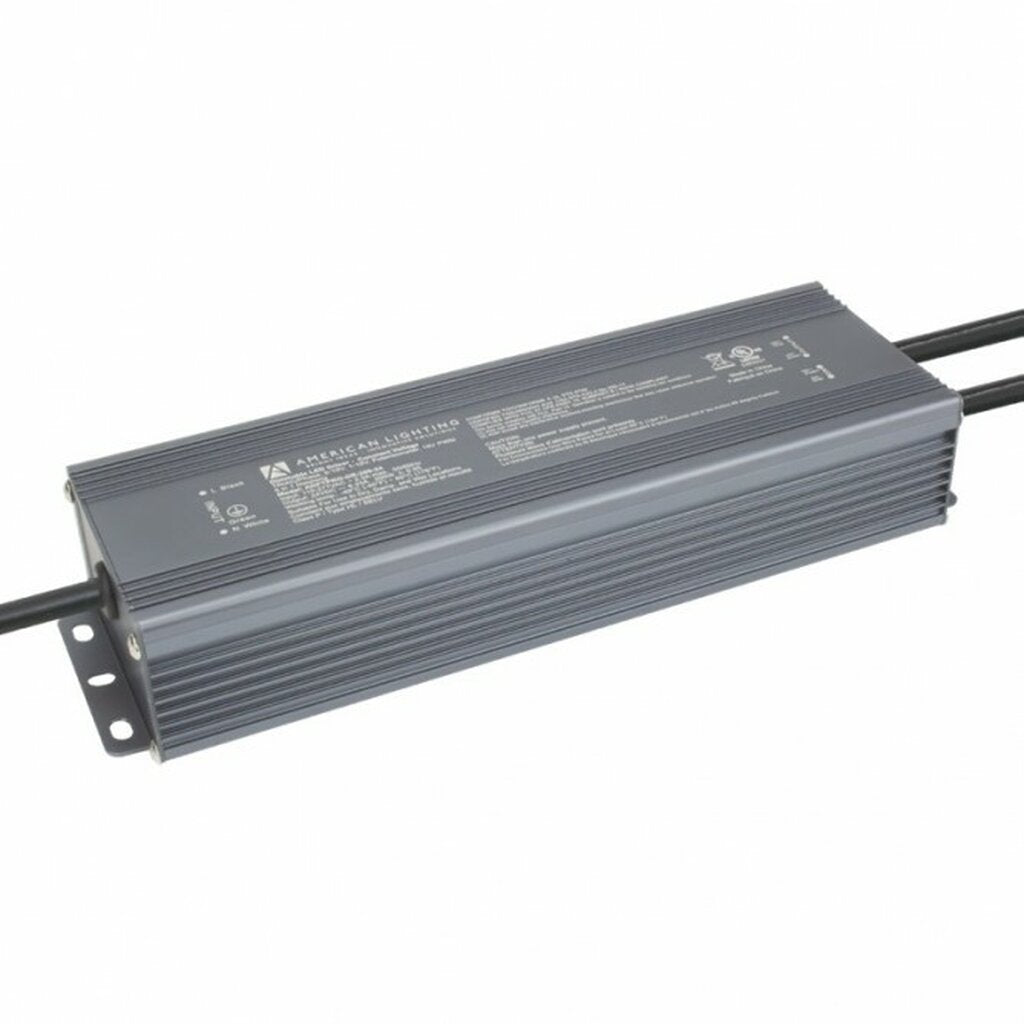

American Lighting ADPTPRO-DR-200-2 LED driver 200W LED ADPT PRO Series

American Lighting's ADPT PRO series of low-voltage drivers can be used to power your low-voltage lighting application. These slim and compact 24V DC constant voltage hardwire drivers are designed with dedicated compartments for both line voltage input and low voltage output wiring and multiple 7/8" knockouts for easy wire configuration. They are capable of operating in all forward and reverse-phase dimming modes, from line-voltage (ELV/MLV/TRIAC), 0-10V, 1-10V, 10V PWM and even potentiometer dimming.

The ADPTPRO-DR-200-24 is a 200 watt maximum dimmable power supply for your 24V lighting products that provide the following features:

• 5-in-1 forward and reverse phase dimming: ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
• Maximum load of 200 watts Low max load of 20 watts
• Class I metal housing (Type HL)
• 8” (SJTW) lead and tail wire
• Dedicated line voltage and low voltage wiring compartments
• Multiple 7/8” knock-outs for easy wire configuration
• Short circuit, over-voltage, over-temperature, overload protections
• cULus Listed Wet location rated
• Class 2 / Type HL / FCC Compliant
• Operating temp: 40° to 140° F
