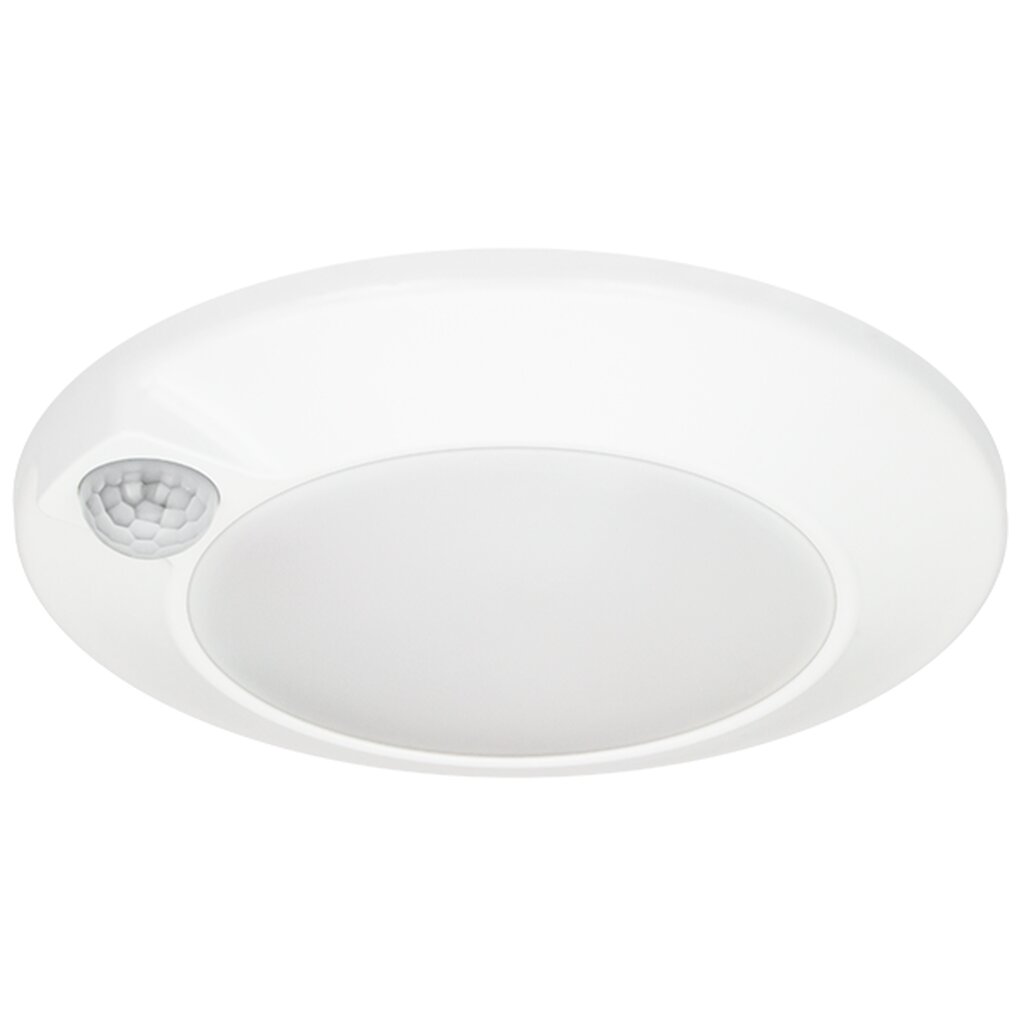

The Quick Disc PIR is a surface mount LED downlight for use with most standard junction boxes and includes an attached PIR motion sensor. Installation is fast and easy due to its unique screw-through mounting system that connects the downlight straight to the junction box.
- 3000K color temperature with 90+ CRI
- Low profile design, as little as 1” high
- Removable lens for quick and easy installation
- Integrated PIR Motion sensor
- Polycarbonate lens for diffused soft light
- ENERGY STAR certified
- cETLus Listed for damp locations
- JA8 and Suitable for use in closets based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5))
- 50,000 hours rated life
Product Information
Part Number
QD4PIR-30-WH
Brand
American Lighting
UPC
714176022048
Specifications
Technology
LED
Color Temp
3000K
Wattage
9
Input Voltage
120V
Color Temperature
3000K
Lumens
600.0
Hours
50000
CRI
90
Beam Angle Type
120
