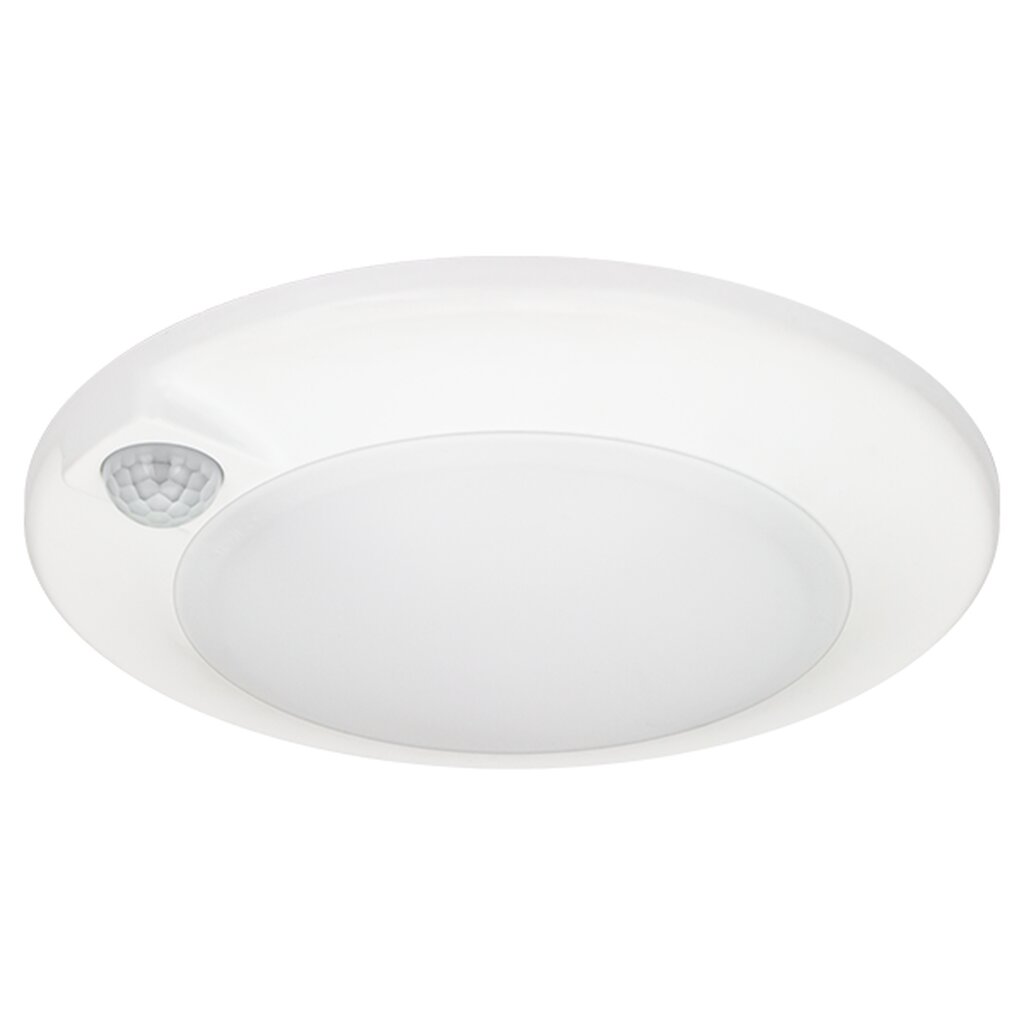

QUICK DISC 6 PIR
The Quick Disc PIR is a surface mount LED downlight for use with most standard junction boxes and includes an attached PIR motion sensor. Installation is fast and easy due to its unique screw-through mounting system that connects the downlight straight to the junction box.
- 3000K color temperature with 90+ CRI
- Low profile design, as little as 1” high
- Removable lens for quick and easy installation
- Integrated PIR Motion sensor
- Polycarbonate lens for diffused soft light
- ENERGY STAR certified
- cETLus Listed for wet locations
- JA8 and Suitable for use in closets based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5))
- 50,000 hours rated life
Product Information
Part Number
QD6PIR-30-WH
Brand
American Lighting
Product Code
QD6PIR-30-WH
Specifications
Technology
LED
Color Temp
3000K
Emitted Color
Warm White
Wattage
15
Input Voltage
120V
Color Temperature
3000K
Lumens
950.0
Hours
50000
CRI
90
Bulb Finish
White
Beam Angle Type
Wide Flood
Beam Spread
110
Dimensions
Height
1.4 in
Overall Diameter
8 in
