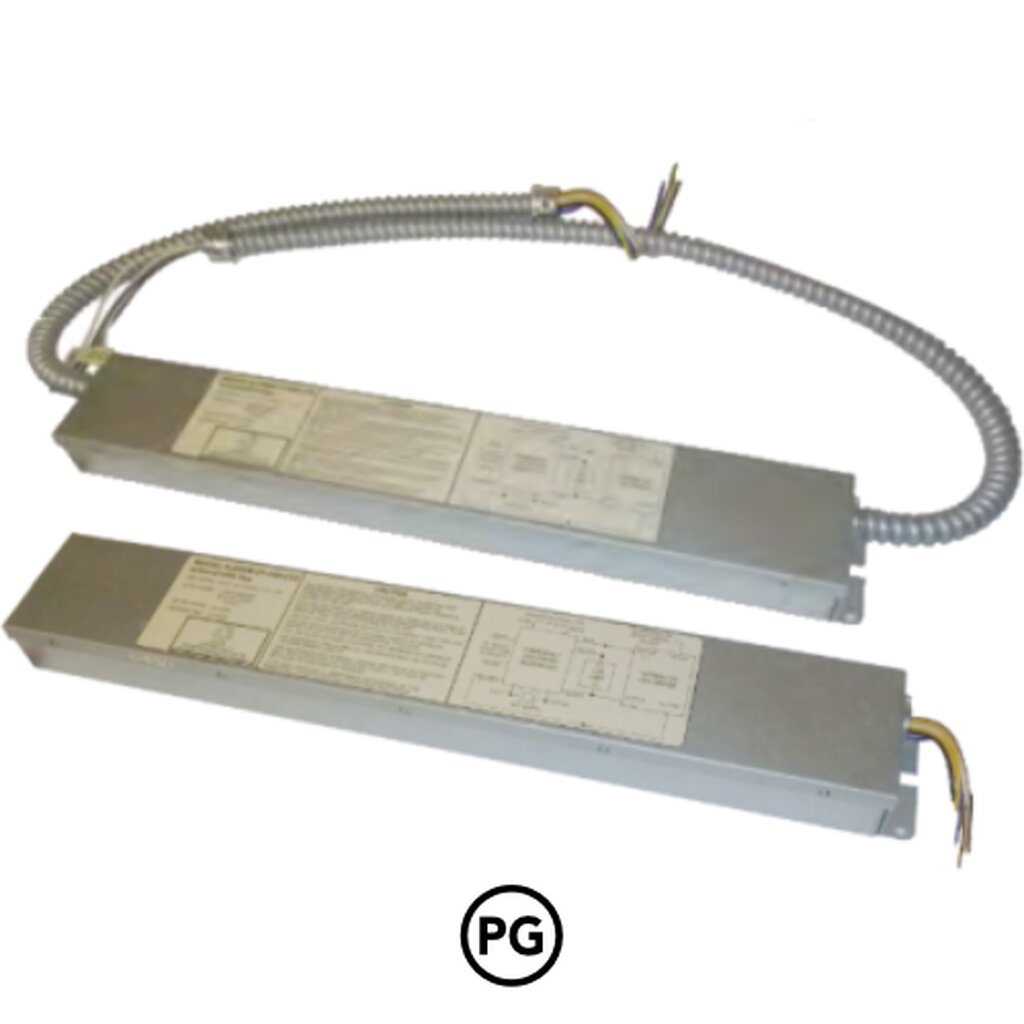

SEEBLEM-CP
Constant-Power Emergency LED Driver
ILLUMINATION
• Works with or without an AC driver to convert new or exist-
ing LED fixtures into unobtrusive emergency lighting.
• Provides constant power output to the load during
emergency mode operation.
• Designed to operate NORMALLY-ON, NORMALLY-OFF or
SWITCHED LOAD fixtures.
ELECTRICAL
• Universal 120-277V, 50/60 Hz input.
• Charge/Power "ON" LED indicator light and push-to-test
switch for mandated code compliance testing.
• Long-life, maintenance free, rechargeable lithium iron
phosphate battery.
• Output short/overcurrent protection: Electronic limiting,
with normal operation resuming upon removal of fault.
• 90-minute minimum emergency operating time over full
temperature range.
• Output classification: Class 2 Compliant.
• Surge protection: Per C62.41 (TVS).
• Input overcurrent protection: Fusible link.
• 24 hour maximum battery recharge time.
Standard models suitable for inside or top mount of
LED fixtures.
• Conduit models suitable for remote mount to LED fixture.
WARRANTY/LISTING
• UL Listedfor factory or field installation.
• Suitable for damp locations (10°C - 55°C).
• Five year warranty on all electronics and housing.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
Local and State codes.
• Certified to CEC under Title 20 regulations.
Replaces BLEDEM-CP-2000
Product Information
Part Number
SEEBLEM-CP-13-C
Brand
Emergensee Lighting
Product Code
SEEBLEM-CP-13-C
Specifications
Technology
LED
Wattage
13.7
