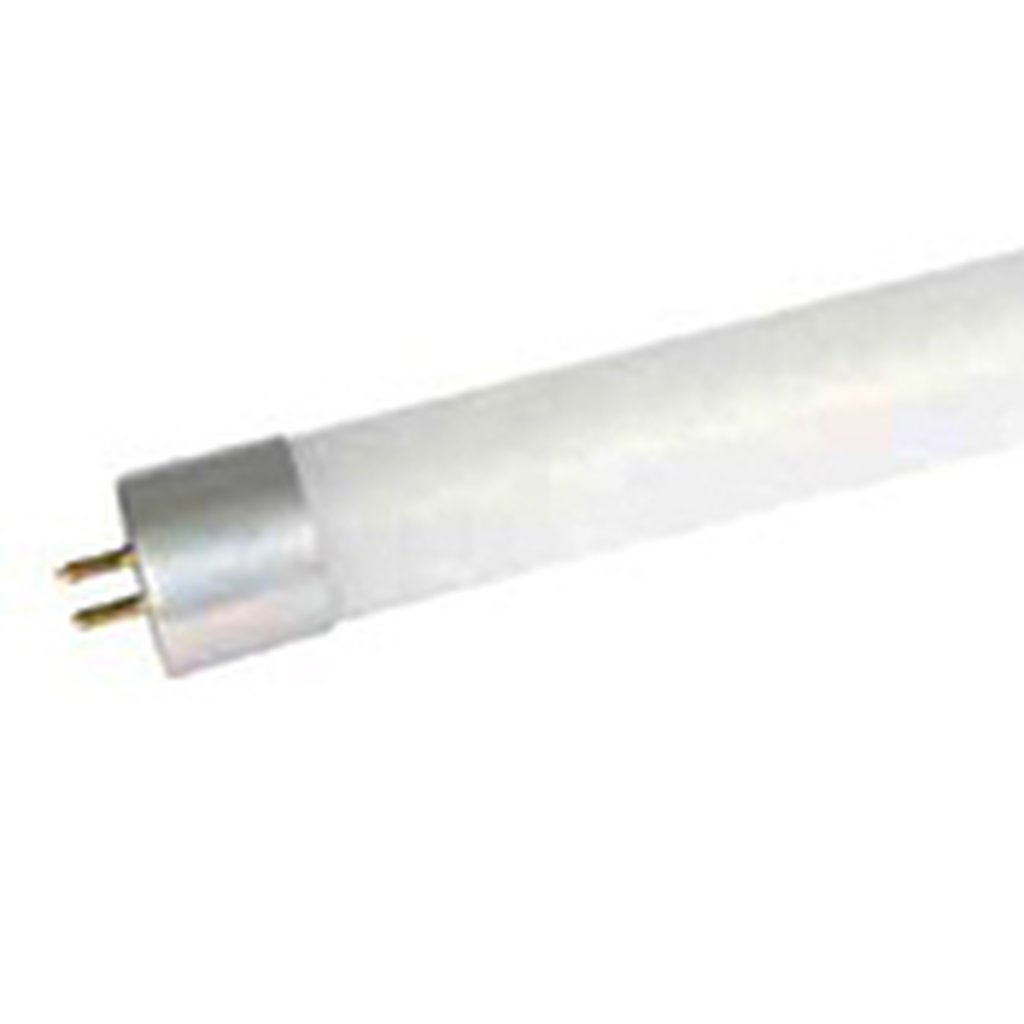

ProLED T5 Bypass Lamps offer an energy efficient, easy to install retrofit solution for F54T5/HO fluorescent lamps. Ideal for linear high bay retrofit or new construction in commercial and industrial applications, ProLED T5 Bypass lamps eliminate both the need for expensive programmed start electronic ballasts and future maintenance costs while reducing energy usage by over 50%.
Specifications
- Easy single end ballast bypass installation ideal for cold ambient temperature applications (-20°C)
- Eliminates the need for expensive ballasts in high bay fixtures- UL Classified 1598C Retrofit Kit
- Damp Location Rated
- 50,000 hour life resulting in lower maintenance costs over time
- No Mercury
- Replaces F54T5/HO
- RoHS Compliant
- Suitable for use in totally enclosed luminaires
- Conforms to requirements of NSF/ANSI standard 2-food equipment
Product Information
Part Number
82987
Brand
Halco
Product Code
T5FR25/840/BYP/HO/LED
UPC
807154829873
Specifications
Technology
LED
Bulb Shape
T5
Color Temp
4000K
Equivalent Wattage
54
UL Listed
true
Wattage
25
Input Voltage
120-277V
Color Temperature
4000K
Lamp Base
G5
Lumens
3300.0
Hours
50000
CRI
82
Bulb Finish
White
Beam Spread
270
Dimensions
Overall Length
45.3 in
Overall Diameter
0.8 in
