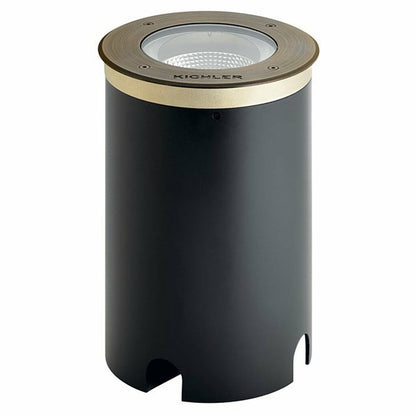

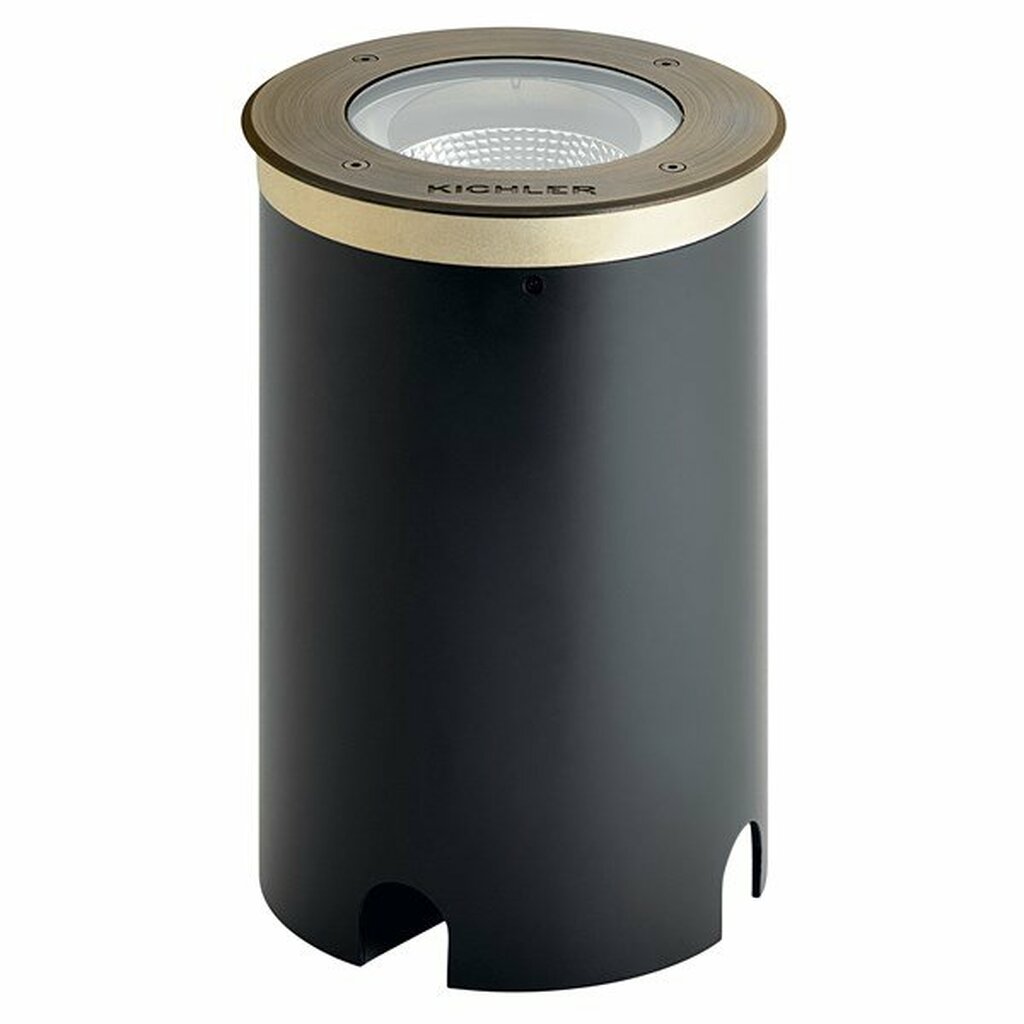

Kichler 16227CBR30 LED Fixture C-Series 10W 45 Degree 3000K In-Ground

Kichler Lighting’s 120-277V LED In-ground Well Lights are available in two beam spreads (45 and 60 degree) and lumen options (775 or 1625) which offer dramatic up-lighting to accentuate architectural details, landmarks and statuary, as well as landscape features.

KEY FEATURE

The fixture features an exterior beam tilt adjustment. Apply an Allen wrench to the designated location at the top of the fixture, just under the trim ring, to adjust the direction of the light (up to 15°). Now you can create striking visual effects without having to open the fixture, which keeps the factory sealed assembly intact to better prevent against water ingression.

CONSTRUCTION

Durable, fully sealed, cast brass housing sits within a heavy-duty polymeric sleeve for direct in-ground or concrete commercial installations. Dual cavity: top protects the optical chamber and LED from heat; bottom further protects potted driver from water ingression. Strain relief at the bottom splice connection is also designed to prevent water ingression. The fixture is built strong to endure the corrosive forces of water, temperature and time.

FINISH

Trim ring in Centennial Brass features a chemically plated base with lacquer finishing (note that brass can patina over time). Stainless Steel trim ring accessory is also available.

INSTALLATION

Composite installation sleeve included for direct in-ground or concrete commercial installations.

LED CHARACTERISTICS

Color-consistent LEDs. Lumen Maintenance: L70 >=55,000 hours. CRI: 80.

OPTICAL DISTRIBUTION

COB and reflector design offer center-to-edge optics for uniform light distribution. The light emitting portion of fixture is lowered for reduced glare at closer distances.
