Lithonia 2GTL4R 40L EZ1 LP835 38.6W LED Dimmable Fixture Retrofit

FEATURES & SPECIFICATIONS

INTENDED USE — The 2GTL_R LED Relight assembly is the ideal solution for renovating existing fluorescent

lensed troffers, delivering improved quality of light and refreshing the space. 2GTLR delivers high efficiency

and energy savings vs. existing fluorescent systems. The 2GTL_R Relight assembly is recommended for

offices, restaurants, schools, hospitals, and other general lighting applications where existing 2x2 or 2x4

lensed troffers are currently in use.

CONSTRUCTION — Universal end brackets/driver assembly are constructed of aluminum for optimal

thermal performance and are secured to the host fixture with provided tek screws. End brackets are painted

white to match existing lensed troffer finish. The LED light engine panel is highly reflective white aluminum

with plug-in connection to driver. A steel wiring connection cover is provided for use if required. Standard

kit requires use of existing door frame/lens assembly.

OPTICS — LED light panel is designed to provide consistent, uniform lighting.

Mounting brackets optimize source-to-aperture distance.

ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide extended service life. 2GTLR

is rated to deliver L90 performance at 60,000 hours. eldoLED driver options deliver choice of dimming range,

and choice of control, while assuring flicker-free, low current inrush, 89% efficiency and low EMI. Ballast

disconnect is provided for quick installation.

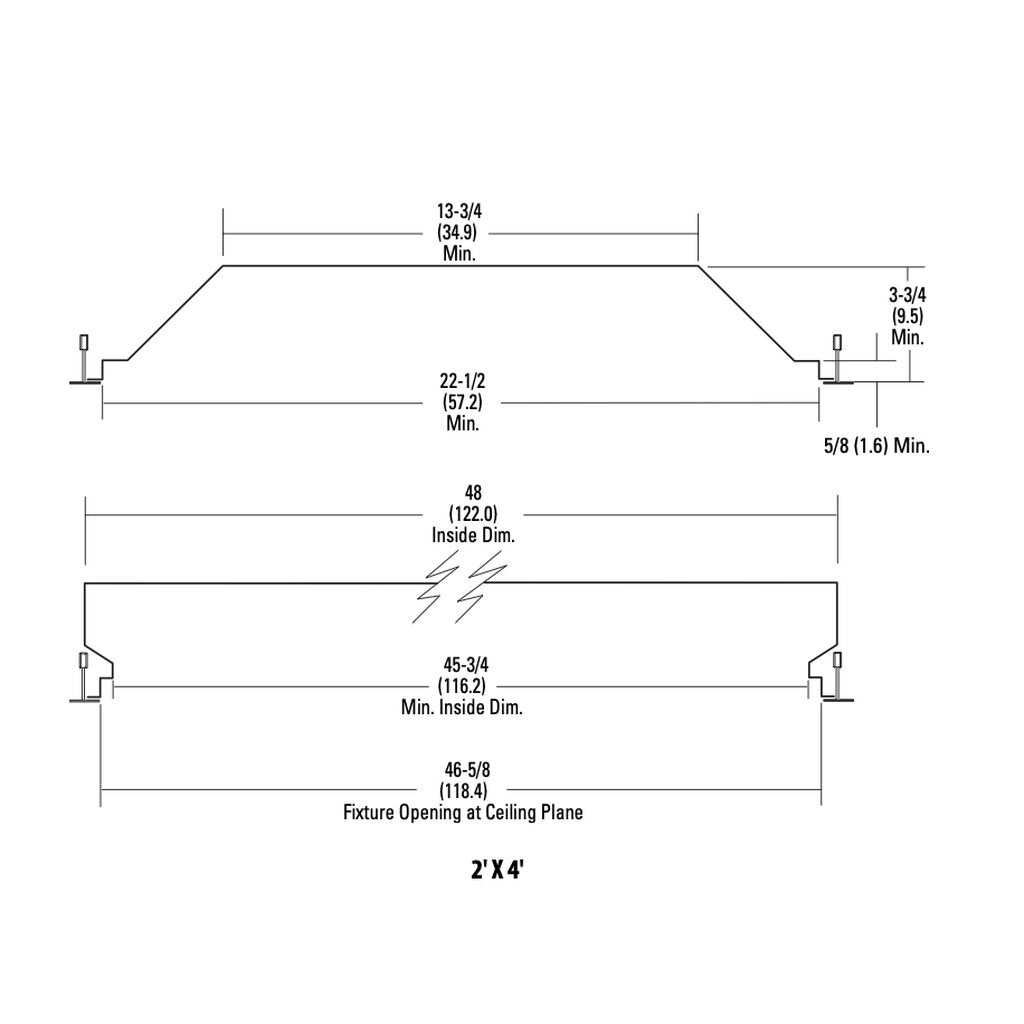

INSTALLATION — After existing fluorescent components are removed from housing, universal end brackets

with integral driver assembly are fastened in place with provided tek screws. Supply wiring connection is

made with plug-in ballast disconnect. The LED panel plugs into the driver assembly and snaps into place

between end brackets for consistent source-to-aperture positioning. LED boards include plug-in connectors

for easy replacement or servicing. UL Classified as suitable for damp location and air-handling installations.

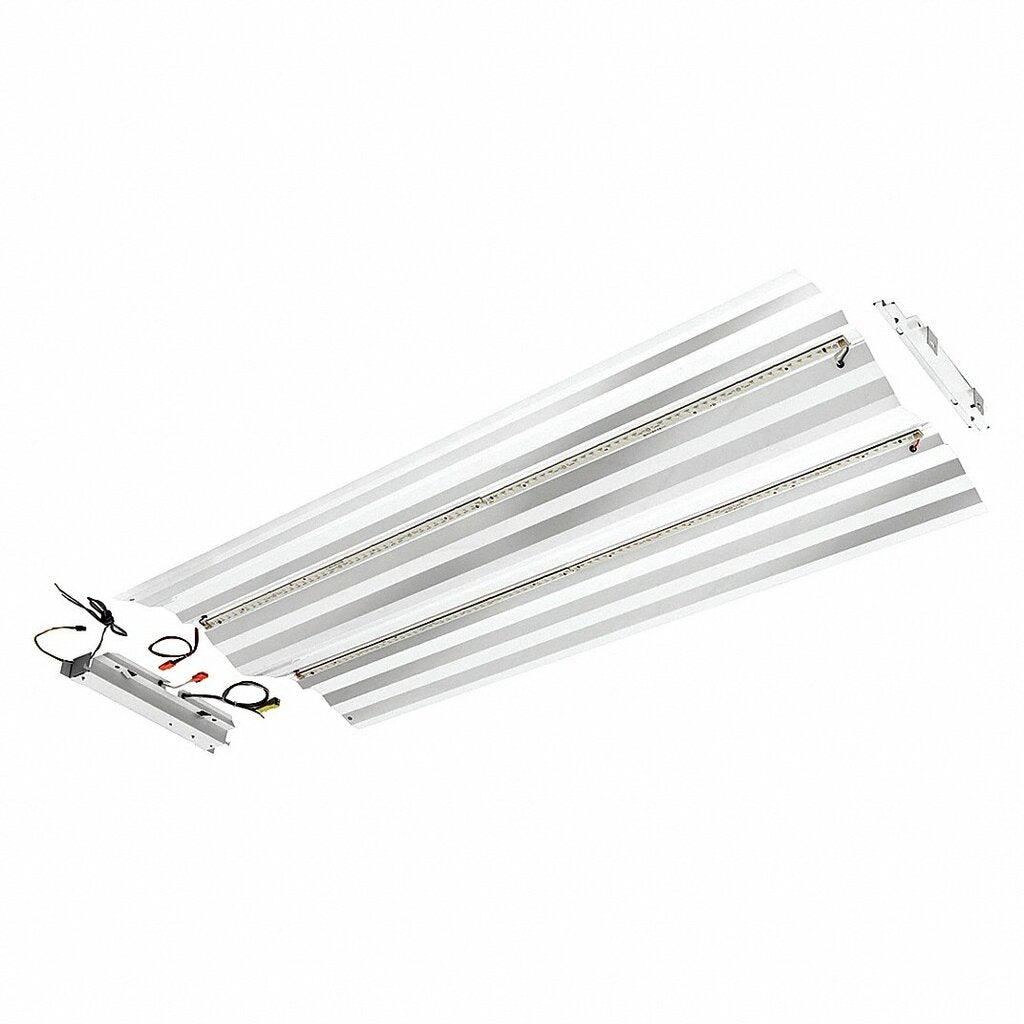

Kit Contents

LED Board; LED Driver; Reflector and Bracket
