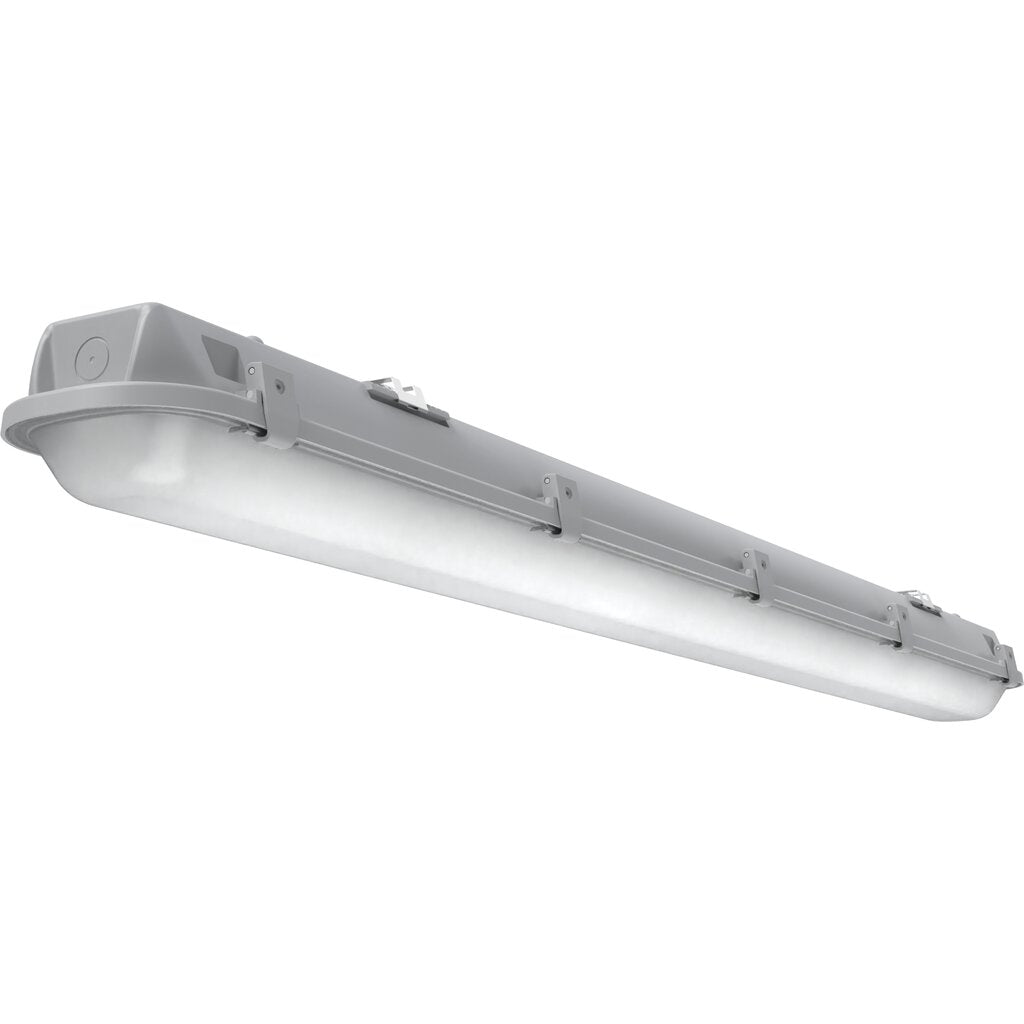

• Lithonia CSVT L48 ALO3 MVOLT SWW3 80CRI LED Strip Dimmable Fixture The
1 1

Lithonia CSVT L48 ALO3 MVOLT SWW3 80CRI LED Strip Dimmable Fixture The

Lithonia CSVT L48 ALO3 MVOLT SWW3 80CRI LED Strip Dimmable Fixture The

$190.00 USD
$190.00 USD
Sale Sold out

CB-0248516
These fully-gasketed, wet-location and code-compliant vapor tights are IP65 and IP66 rated. They can be surface mounted on the ceiling or wall and are designed for continuous row mounting. The CS... Show More
View full details
  • These fully-gasketed, wet-location and code-compliant vapor tights are IP65 and IP66 rated. They can be surface mounted on the ceiling or wall and are designed for continuous row mounting. The CSVT vapor tights are ideal for outdoor venues, canopies and locker rooms and with the ability to switch lumens and adjust color temperature in 1 fixture, the CSVT can easily be adapted to the needs of each project - 9 different variations within the same SKU.
    • Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms, not for use or installation in direct outdoor sunlight
    • 0-Volt to 10-Volt dimming standard
    • CSA certified to UL and C-UL standards for wet location- IP65, IP66 rated per IEC60529- FCC title 47, part 15 subpart B compliant- 2.5kV/0.75kA surge rated per ANSI C82-77-5-2015
    • Surface (wall, ceiling) using standard brackets
    • Must be installed under canopy or covered ceiling
    • Product includes a 5-year warranty
    • Includes light gray polycarbonate housing
  • MVOLT (120-277V) & 347V
  • Must be installed under canopy or covered ceiling.

Product Information

Part Number CSVT L48 ALO3 MVOLT SWW3 80CRI
Brand Lithonia
Product Code 270N96
UPC 00194995069507

Specifications

Technology LED
Color Temp 5000K
UL Listed true
Emitted Color CCT
Input Voltage 120-347V
Color Temperature 5000K
Hours 50000
Dimmable true
Bulb Finish Gray Polycarbonate Housing
Beam Angle Type Wide Angle
Beam Spread 110

Dimensions

Length 50.6 in
Width 4.3 in
Height 5.8 in
