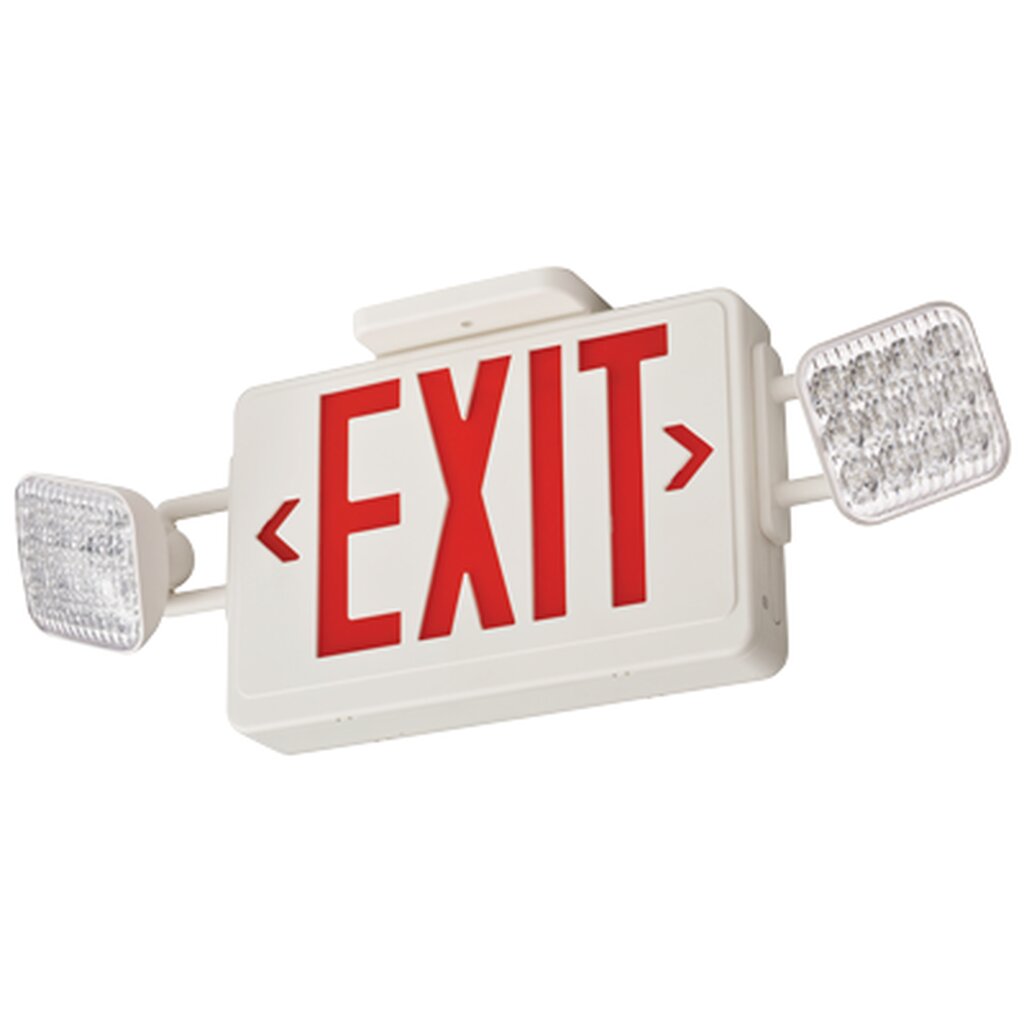

Lithonia ECRG SQ M6 Fixture Thermoplastic LED exit/unit combo

Lithonia ECRG SQ M6 Fixture Thermoplastic LED exit/unit combo

$135.71 USD
$135.71 USD
Sale Sold out

CB-0248507
The EXRG LED Exit Sign has an internal switch for red or green color selection Offered in the new bright white thermoplastic housing, the EXRG has a classic design with updated features. This full... Show More
View full details
  • The EXRG LED Exit Sign has an internal switch for red or green color selection
  • Offered in the new bright white thermoplastic housing, the EXRG has a classic design with updated features. This fully assembled single-face exit comes with an extra faceplate and red and green panel inserts for ultimate field configurability.
  • Dual-voltage 120/277, 60Hz
  • UL Listed, Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA, Indoor damp location 50F to 104F (10C to 40C) listed
  • Top, side and back mount. Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
  • The typical life of the LED lamp is 10 years
  • Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
  • BATTERY: 3.6V maintenance-free, rechargeable, nickel metal hydride
  • 2-year limited warranty
  • Dimensions (Length x Depth x Height): 16.5in x 2.05in x 7.25in

Product Information

Part Number ECRG SQ M6
Brand Lithonia
Product Code 269XW7
UPC 00194994900467

Specifications

Technology LED

Dimensions

Length 19.3 in
Width 4.7 in
Height 8.3 in
