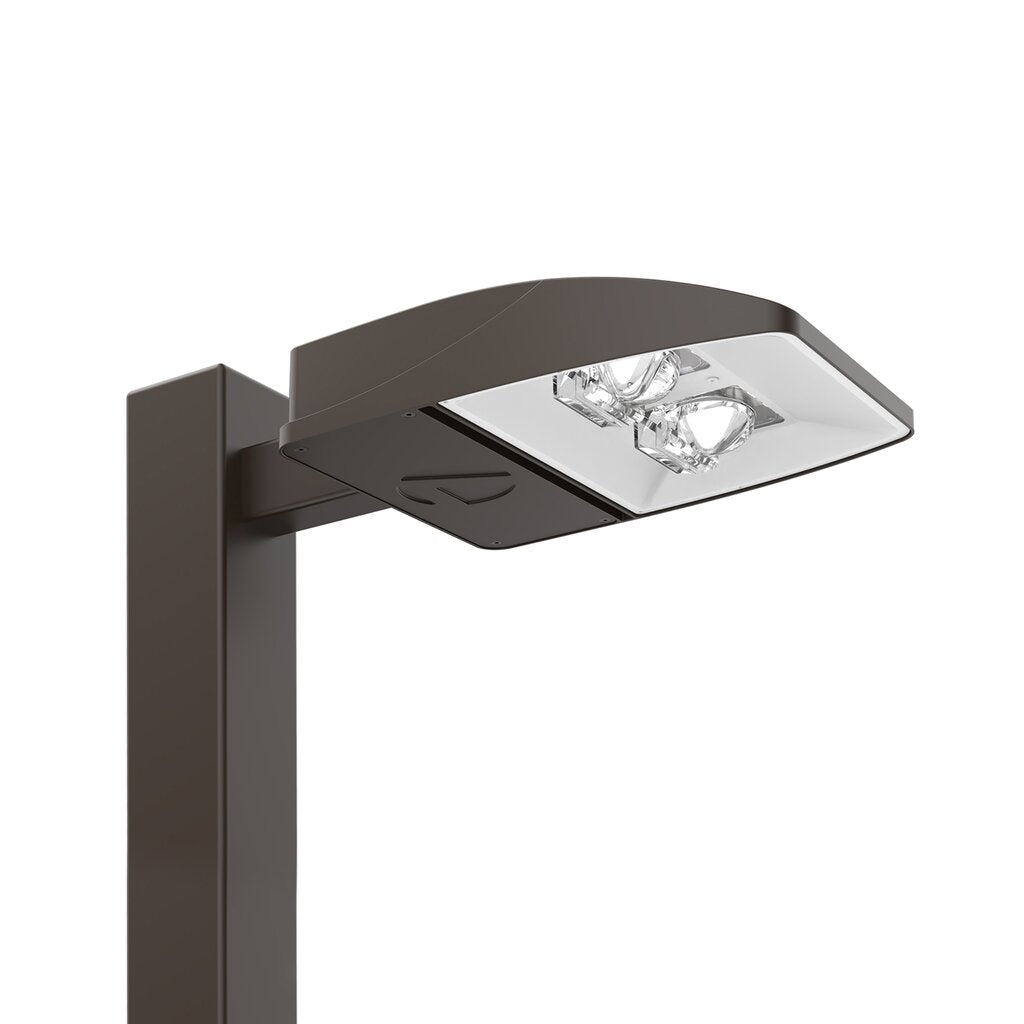

• Lithonia ESX1 LED P2 40K R3 MVOLT UPA BLS DDBXD M2 LED Fixture The ESX
1 1

Lithonia ESX1 LED P2 40K R3 MVOLT UPA BLS DDBXD M2 LED Fixture The ESX

Lithonia ESX1 LED P2 40K R3 MVOLT UPA BLS DDBXD M2 LED Fixture The ESX

$644.89 USD
$644.89 USD
Sale Sold out

CB-0235191
Bi-level ALO switch and reversible arm maximizes flexibility in the field Delivering 8,000 to 25,000 lumens the ESX1 LED replaces 150W to 400W metal halide luminaires while saving up to 70%+ energ... Show More
View full details
  • Bi-level ALO switch and reversible arm maximizes flexibility in the field
  • Delivering 8,000 to 25,000 lumens the ESX1 LED replaces 150W to 400W metal halide luminaires while saving up to 70%+ energy costs
  • Hardwired on/off capability only
  • UL listed to meet US and Canadian standards, suitable for wet locations, rated for -40C minimum ambient and listed as a DesignLights Consortium (DLC) qualified product
  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted using the universal mounting arm allowing it to mount on both round and square poles, with a minimum of 3.5 inch pole or larger, a wall mount bracket is also available
  • Type 3 distribution use high-efficacy LEDs with LED lumen maintenance greater than L70/60,000 hours
  • Exterior parts are protected by a Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering, the result is a high-quality finish that is warrantied not to crack or peel
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 19.9 in x 12 in x 2.9 in

Product Information

Part Number ESX1 LED P2 40K R3 MVOLT UPA BLS DDBXD M2
Brand Lithonia
Product Code 269PG3
UPC 00194994838302

Specifications

Technology LED
Bulb Finish Gloss

Dimensions

Length 20.1 in
Width 13.1 in
Height 3.7 in
