Lithonia ESXF3 ALO SWW2 YS DDB M2 53W/69W/100W LED Flood Light Fixture

Lithonia ESXF3 ALO SWW2 YS DDB M2 53W/69W/100W LED Flood Light Fixture

$245.00 USD
$245.00 USD
Sale Sold out

CB-0248460

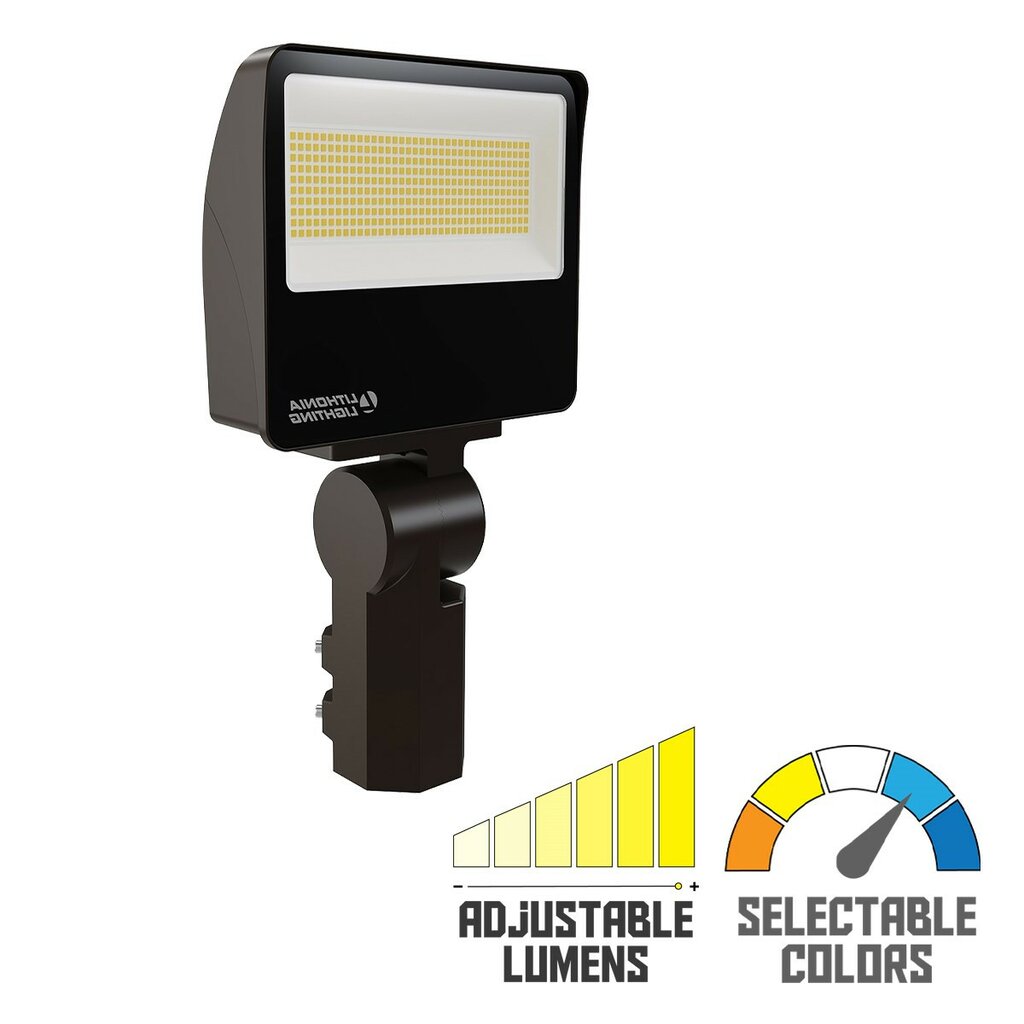

The Lithonia Lighting ESXF LED all-in-1 floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching and a selectable photocell, so... Show More
View full details
The Lithonia Lighting ESXF LED all-in-1 floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with 2 popular mounting options standard in each box.

  • Design: the Lithonia Lighting ESXF LED is the all-in-1 floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching and selectable dusk-to-dawn photocell
  • Energy savings: energy-efficient LEDs with a lumen output of 8500 Lumens, 10500 Lumens and 14000 Lumens
  • Selectable: adjustable lumen output, switchable CCT (3000K, 4000K, 5000K) and standard photocell
  • Ratings: IP66 rated aluminum housing, DLC certified, CSA certified to US and Canadian standards
  • Voltage: Mvolt (120-Volt to 277-Volt), utilizes electronic drivers that are 0-10-Volt, capable of continuous dimming and ensure system power factor 90% and THD
  • Intended use: designed to provide a cost effective, energy-efficient solution for the 1-for-1 replacement of existing traditional sources

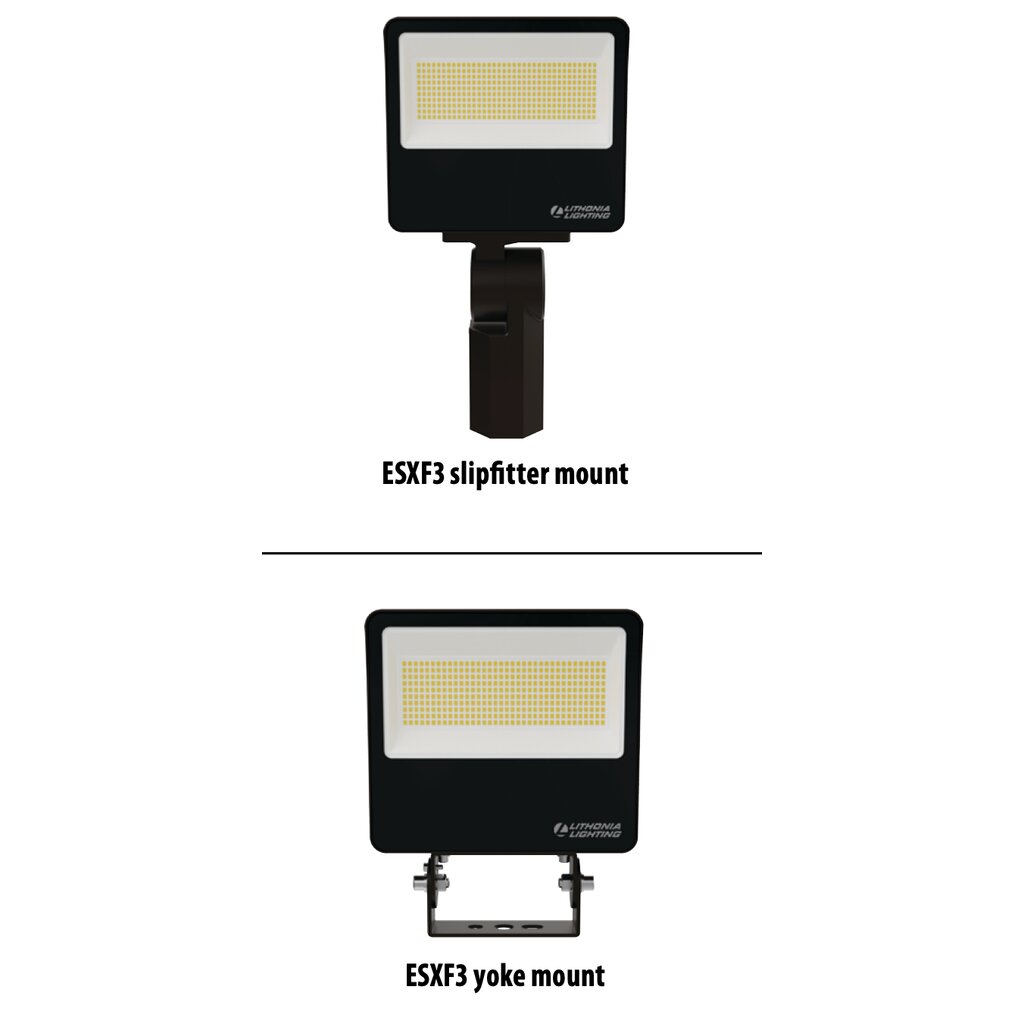

  • Installation: ships with 1/2 NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4 in. electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
  • Construction: sealed die-cast aluminum body and IP66 Listed to withstand moisture and the elements
  • Warranty: 5-year limited warranty
  • Dimension: 6.16 in. x 6.75 in. x 1.8 in.
  • Controls are easily accessible from removable switch cover plate
  • Delivers a uniform, wide flood 7x7 light distribution
  • ESXF is a cost-effective solution for superior illumination

Product Information

Part Number ESXF3 ALO SWW2 YS DDB M2
Brand Lithonia
Product Code 276ALW
UPC 00196182393266

Specifications

Technology LED
Color Temp 5000K
Emitted Color CCT
Wattage 100
Input Voltage 120-277V
Color Temperature 5000K
Lumens 14000.0
Number Of Bulbs 1

Dimensions

Length 16.1 in
Width 8.9 in
Height 2.8 in
