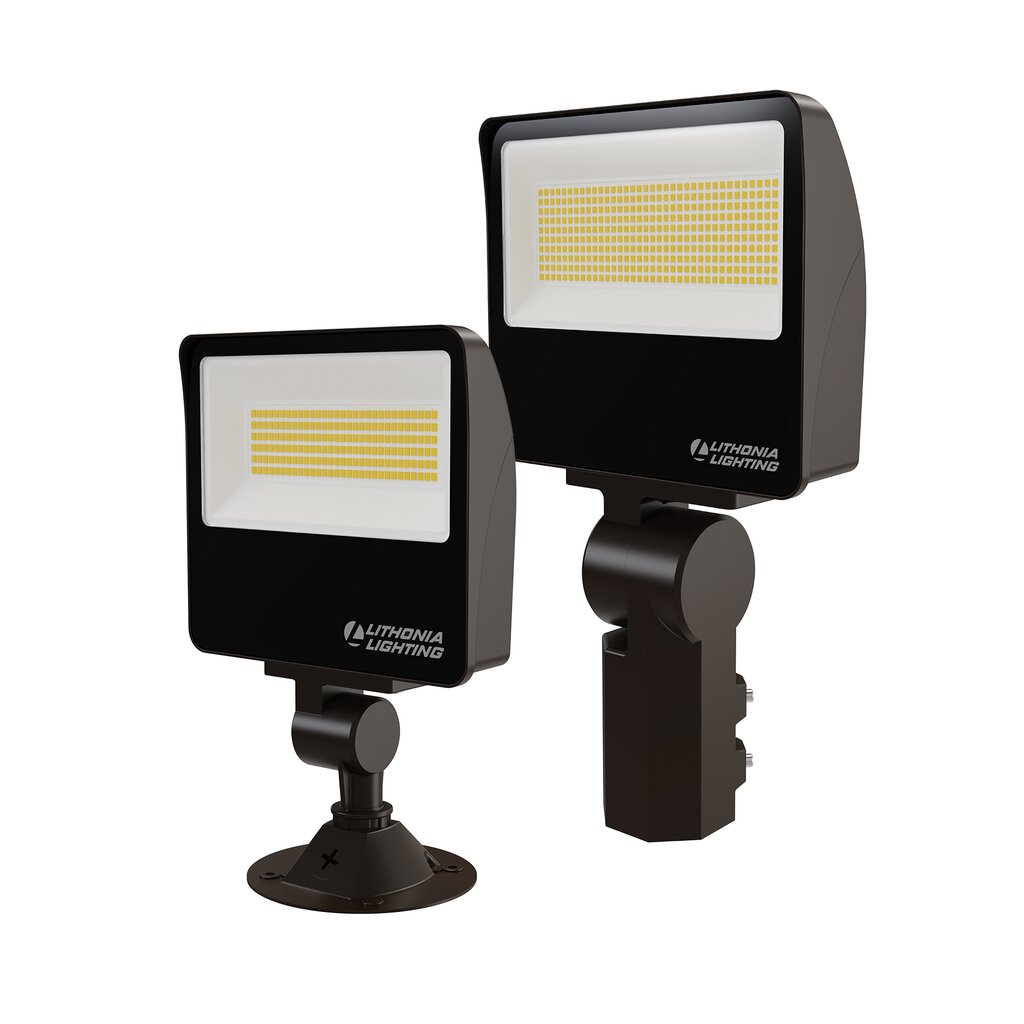

• Lithonia ESXF4 ALO SWW2 UVOLT YS DDB M2 Fixture The Lighting ESXF LED
1 1

Lithonia ESXF4 ALO SWW2 UVOLT YS DDB M2 Fixture The Lighting ESXF LED

Lithonia ESXF4 ALO SWW2 UVOLT YS DDB M2 Fixture The Lighting ESXF LED

$445.58 USD
$445.58 USD
Sale Sold out

CB-0248470
DESIGN: The Lithonia Lighting ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell ENERGY S... Show More
View full details
  • DESIGN: The Lithonia Lighting ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor 90% and THD
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting, models ship standard with 18 SO cord
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
  • DIMENSIONS: 9.55 in. x 10.54 in. x 3.22 in.

Product Information

Part Number ESXF4 ALO SWW2 UVOLT YS DDB M2
Brand Lithonia
Product Code 276AM4
UPC 00196182393297

Specifications

Technology LED

Dimensions

Length 17.7 in
Width 10.5 in
Height 3.1 in
