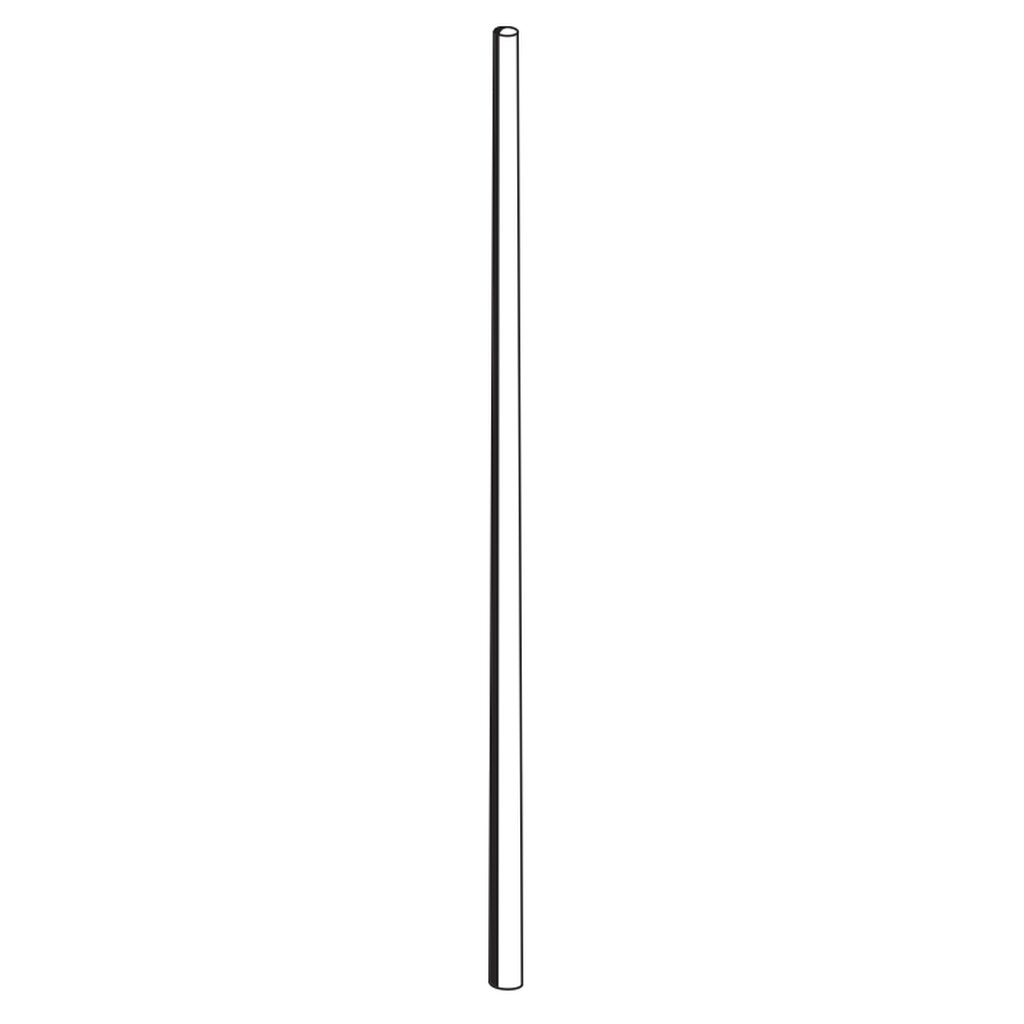

Lithonia RTFDB 18 6X T20 DDB LED Fixture ROUND TAPERED FIBERGLASS

INTENDED USE — Round tapered direct bury (embedded) fiberglass general purpose pole for up to 35 foot

mounting heights.

CONSTRUCTION — Reinforced composite shaft incorporating "E" type fiberglass and pigmented, UV inhibiting,

thermosetting polyester resin.

Pole Top: Options include 4" tenon top, drilled for side mount fixture, tenon with drilling (includes extra handhole)

and open top. Side drilled and open top poles include a removable top cap.

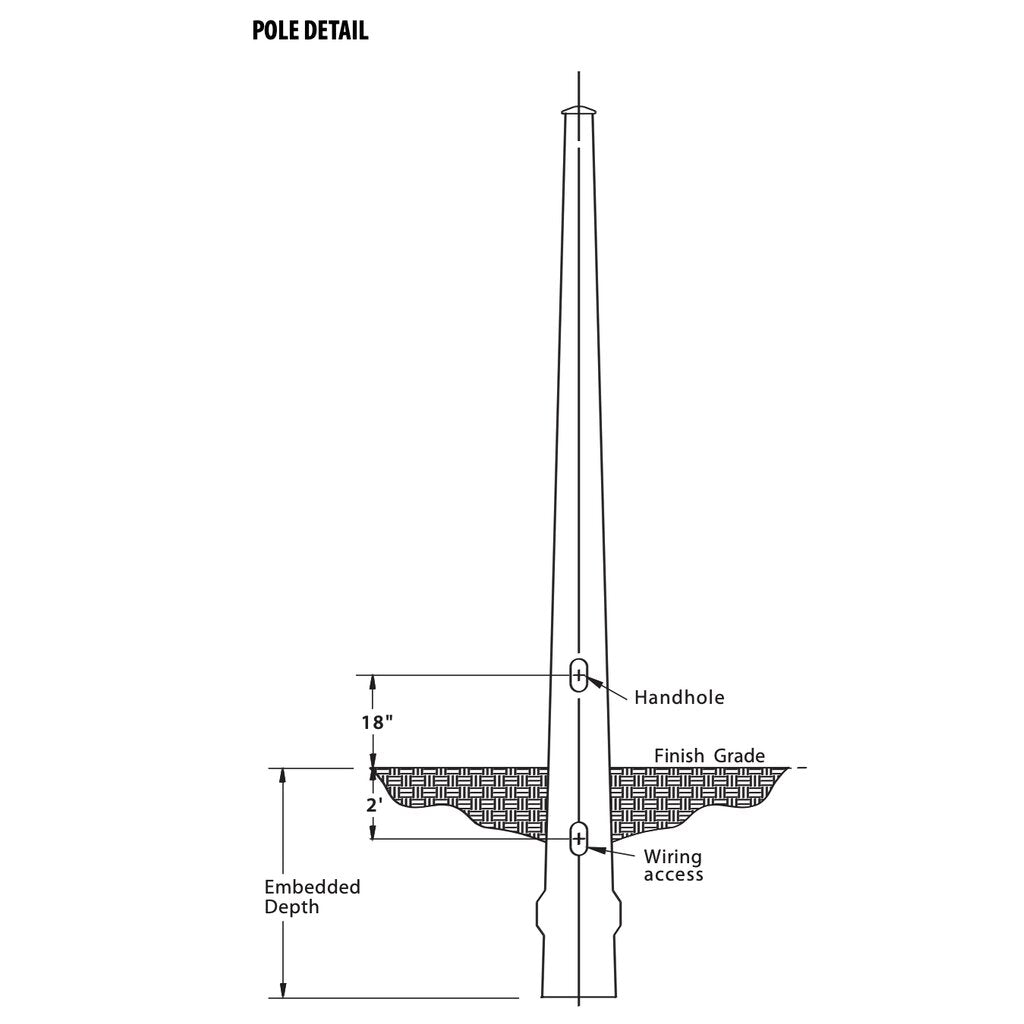

Handhole: A reinforced, 2-1/2" x 5" oval handhole with grounding provision is provided at 18" above grade. Every

handhole includes a cover and cover attachment hardware.

HARDWARE — Fasteners are high-strength galvanized, zinc-plated or stainless steel.

FINISH — Shaft is painted with a polyurethane top coat providing a minimum 1.5 dry film thickness and smooth

surface finish. Must specify finish.

INSTALLATION — Do not erect poles without having fixtures installed. Factory-supplied templates must be used

when setting anchor bolts. Lithonia Lighting will not accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates. If poles are stored outside, all protective wrapping must be removed

immediately upon delivery to prevent finish damage. Lithonia Lighting is not responsible for the foundation design.
