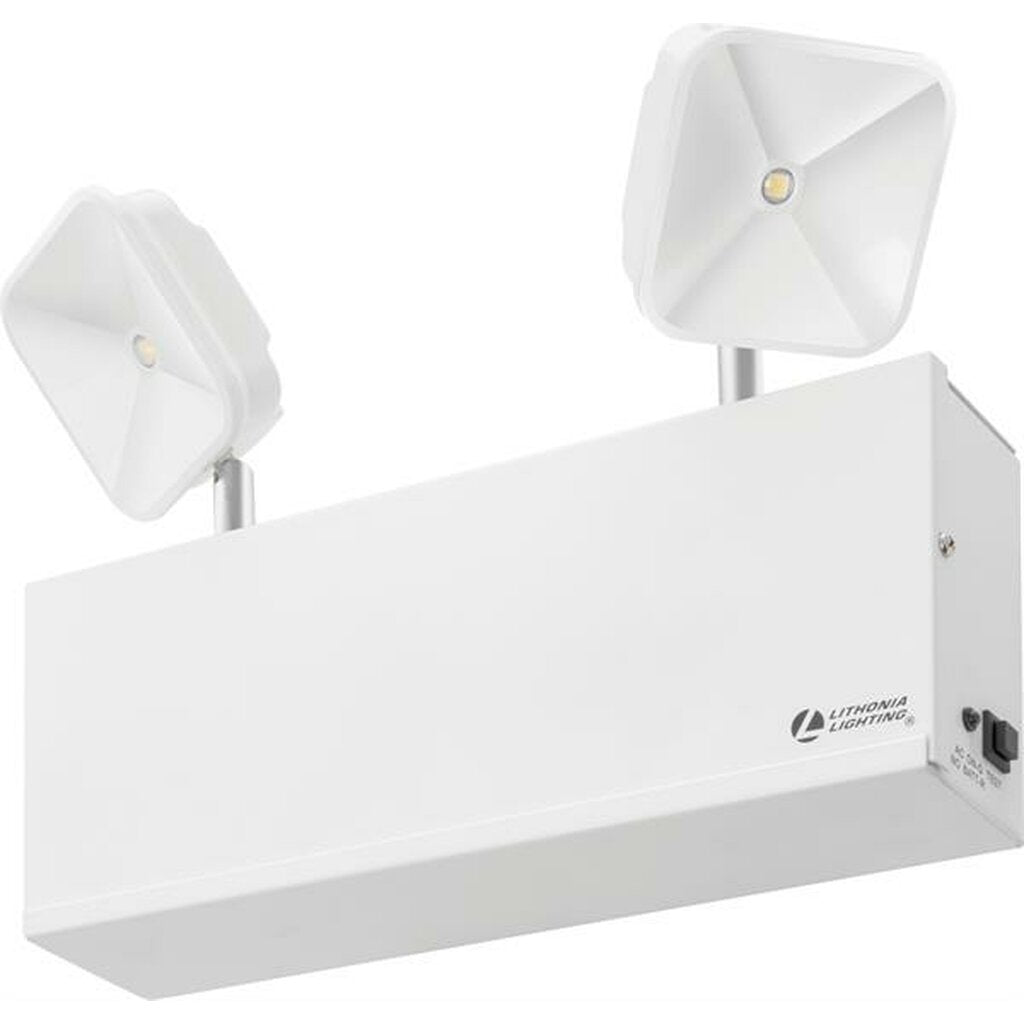

Lithonia TCU 750L M4 LED Fixture Indura Commercial Emergency Unit

INTENDED USE — Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications where steel housing emergency lighting is required.

CONSTRUCTION — 20-gauge steel housing, finished with corrosion-resistant instrument enamel. The back- plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes.

OPTICS — The 350L features two high performance LED lampheads rated at 1.6 watts each and delivers a total of 371 lumens. The 750L features two high performance LED lampheads rated at at 3.5 watts each and delivers a total of 775 lumens.

ELECTRICAL — UVOLT (120 thru 347V, 50/60hz). Current-limiting charger maximizes battery life and minimizes energy consumption to provide low operating costs. Small battery chargers certified in the CA Title 20 Appliance Efficiency Database.

Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts. Regu-lated charge voltage maintains a stable charge voltage over a wide range of line voltages.

Prevents over/undercharging that shortens battery life and reduces capacity. Filtered charger input minimizes charge voltage ripple and extends battery life.

Brownout protection is automatically switched to emergency mode when supply voltage drops below ap-proximately 85 VAC.

AC Reset and Low Voltage Disconnect allows battery connection before AC power is applied and prevents battery damage from deep discharge.

BATTERY: Nickel Metal Hydride battery, 9.6V. The 350L and 750L HO provide remote capacity or extended run time.
