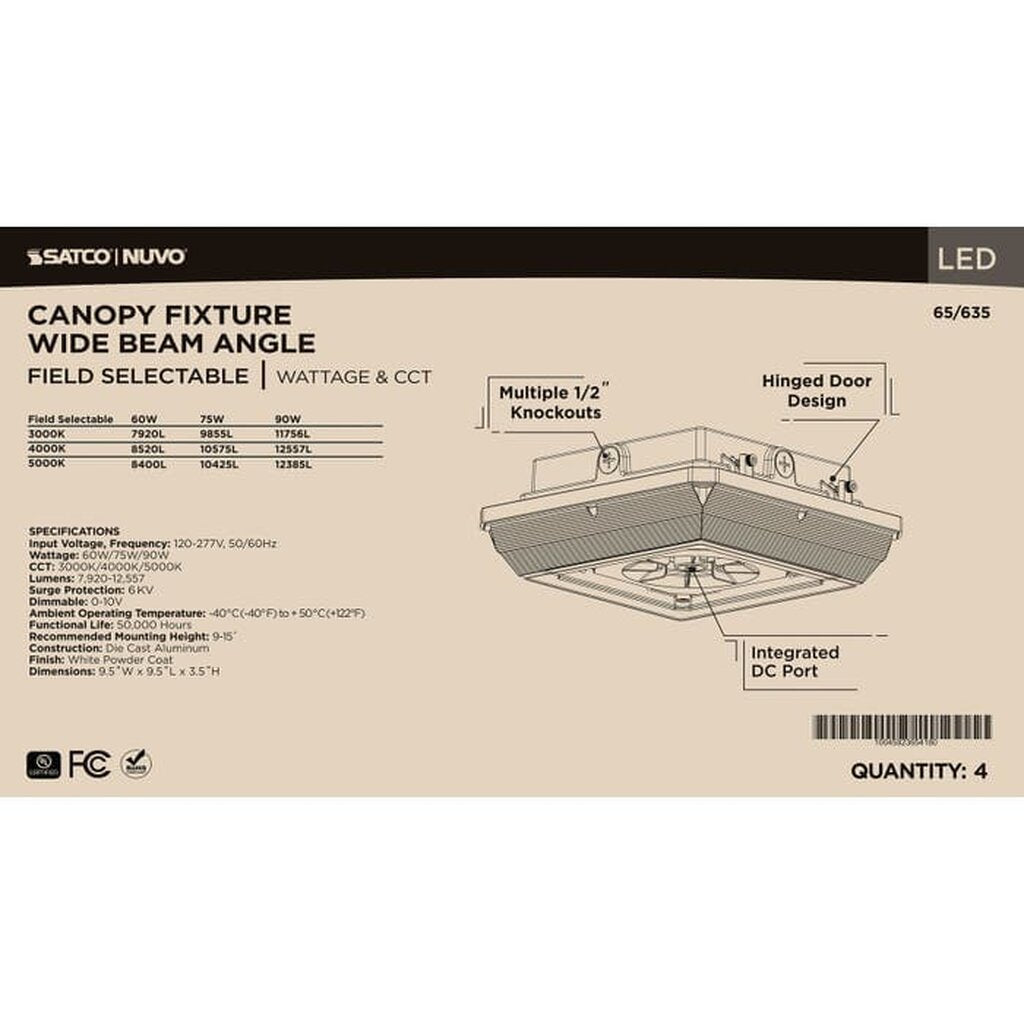

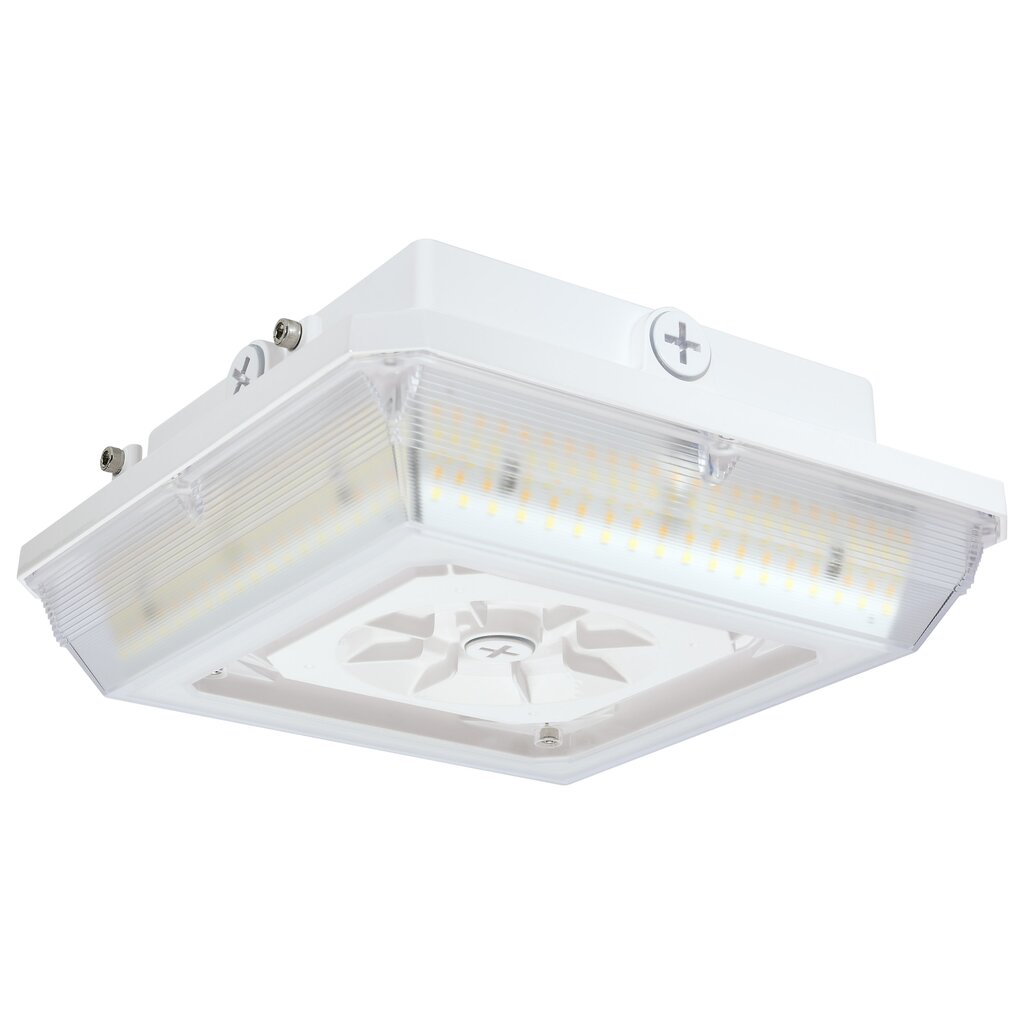

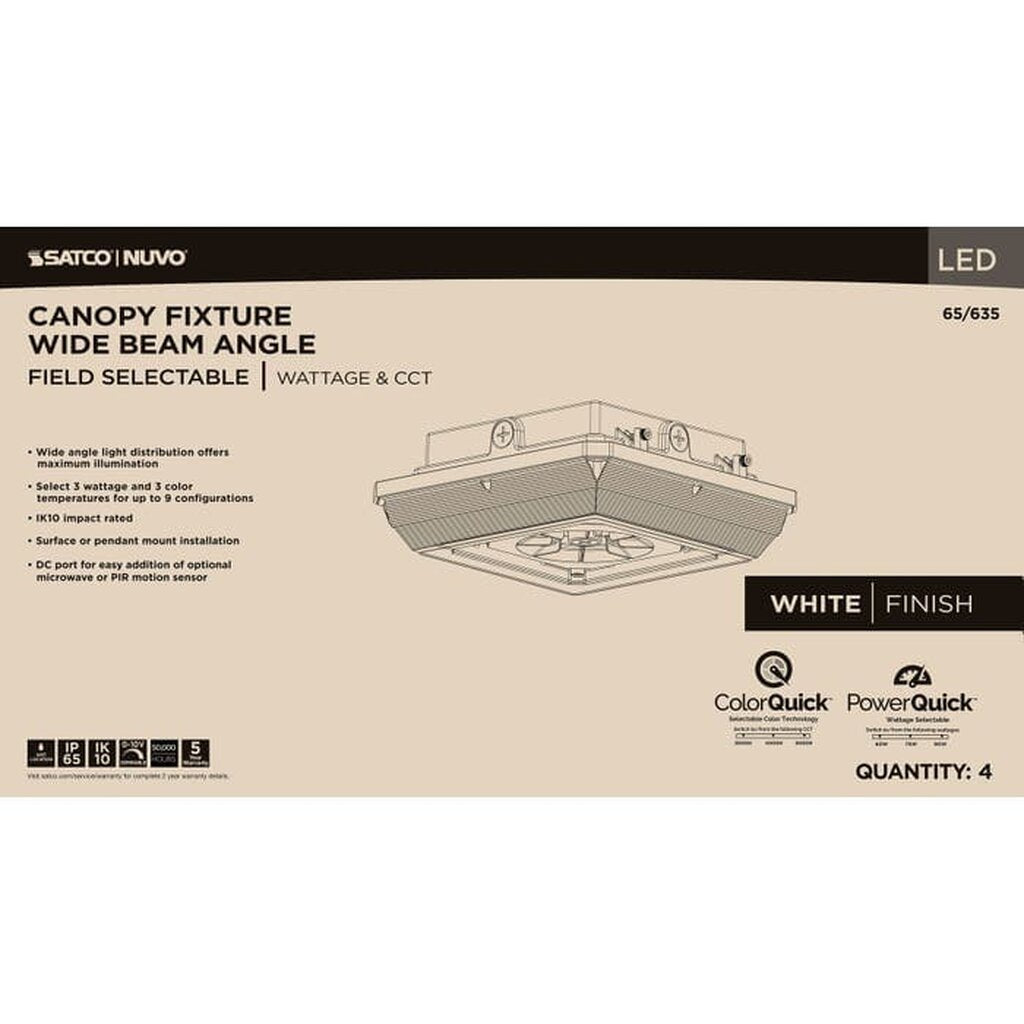

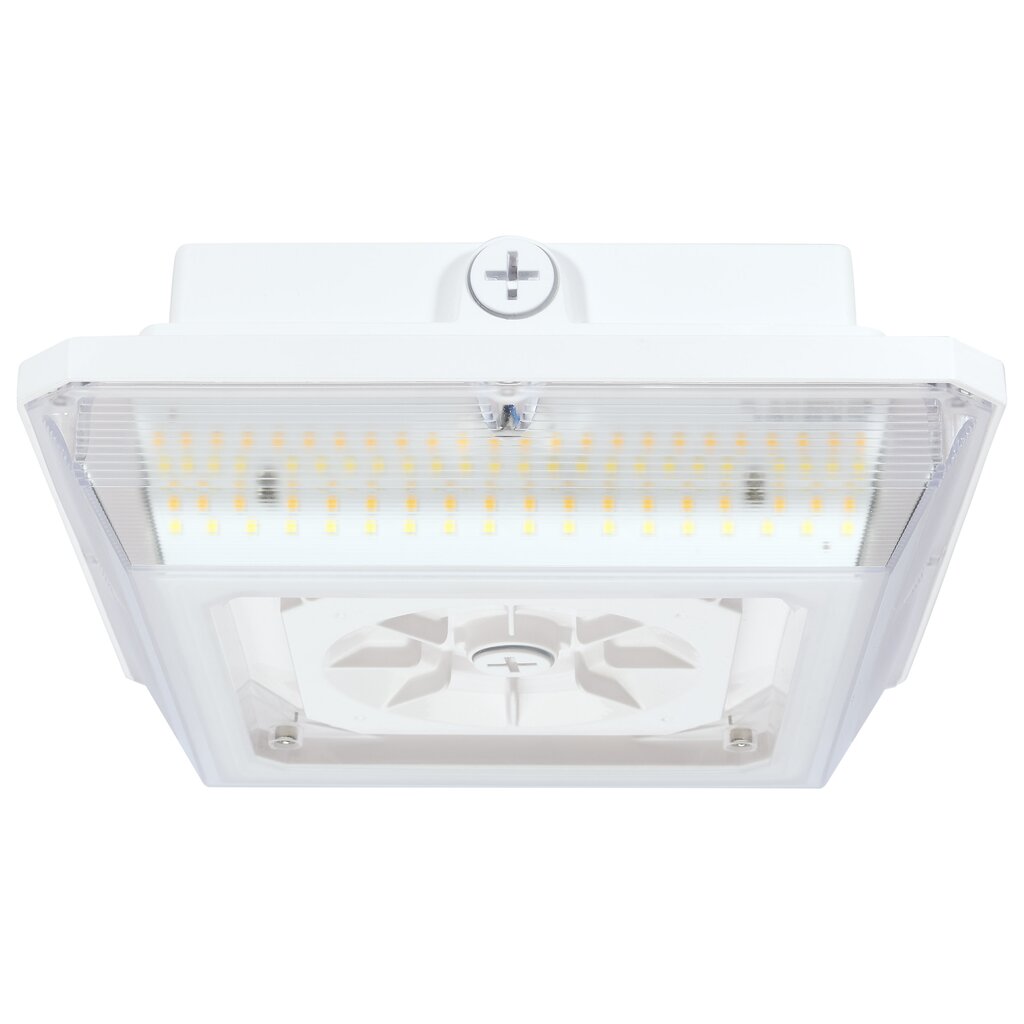

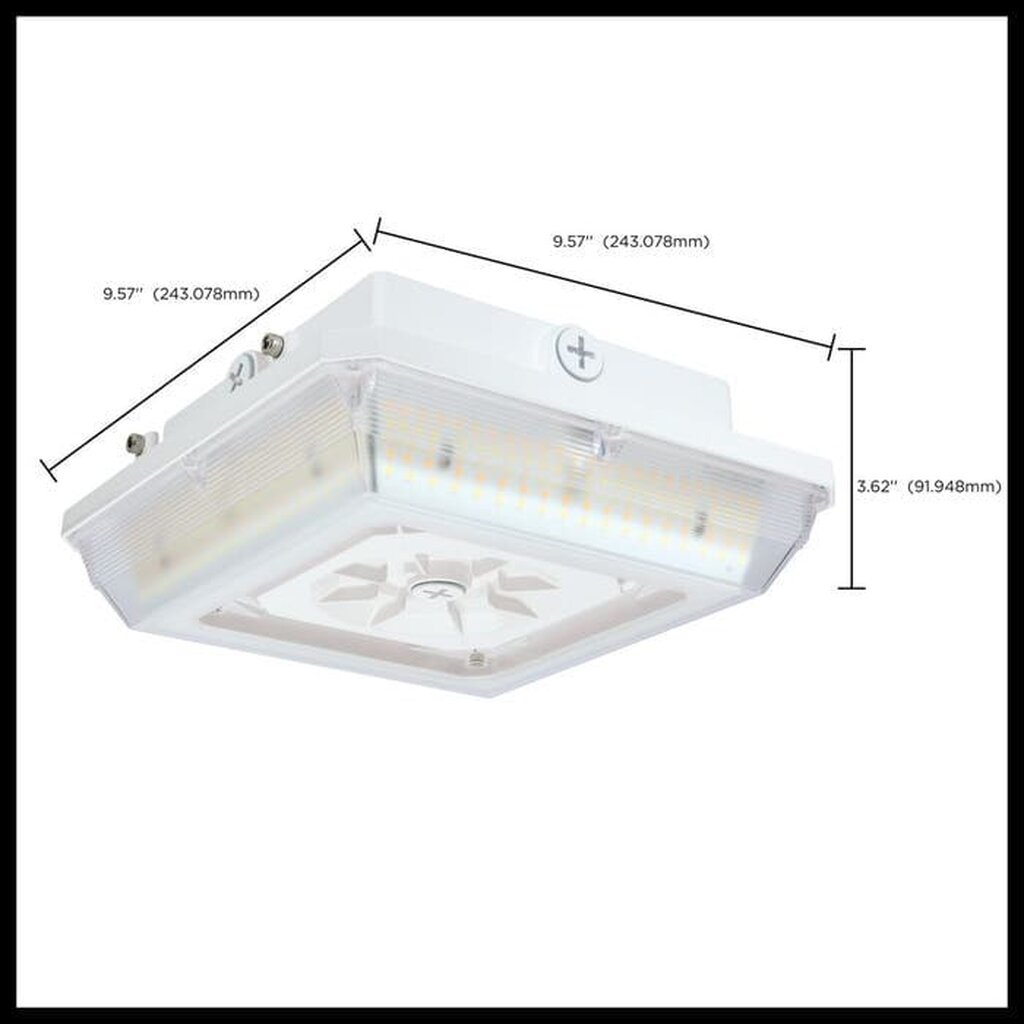

Satco 65-635 60W/75W/90W LED Dimmable Fixture Square - Wide Beam Angle

The Satco NUVO LED Canopy Light is a high-performance outdoor lighting solution designed for commercial and utility applications such as parking garages, gas station canopies, covered walkways, and drive-throughs. Constructed from durable die-cast aluminum with a polycarbonate lens, this fixture is built to withstand harsh outdoor environments while delivering reliable, uniform illumination.

Featuring selectable wattage (60W / 75W / 90W) and selectable color temperature (3000K, 4000K, or 5000K), this canopy light offers flexibility to tailor light output and appearance to your specific project needs. Producing up to 12,557 lumens with a wide 190° beam angle, it provides excellent coverage while maintaining high efficiency and a power factor greater than 0.9.

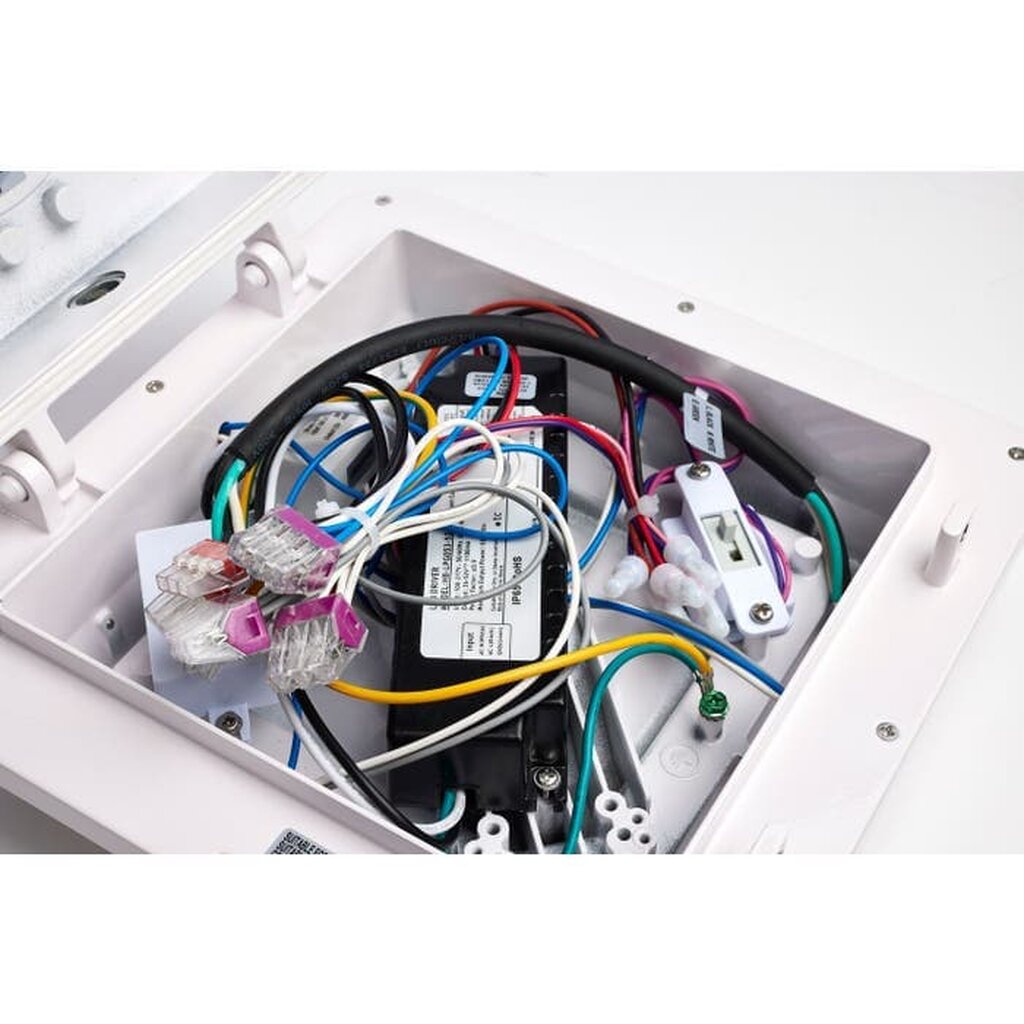

This fixture includes integrated 0–10V dimming, built-in 6KV surge protection, and an integrated DC sensor port for added control options. Rated for 50,000 hours of operation and designed for mounting heights of 15–20 feet, it delivers long-lasting performance with reduced maintenance. Multiple half-inch knockouts and a ¾-inch rear knockout allow for versatile mounting, including pendant applications.

Ideal for demanding outdoor installations, the Satco NUVO LED Canopy Light combines durability, energy efficiency, and installation flexibility in a clean, low-profile square design finished in white.

Key Features:

• Selectable wattage: 60W / 75W / 90W

• Selectable CCT: 3000K / 4000K / 5000K

• Output: 7,920–12,557 lumens

• 0–10V dimming compatible

• Built-in 6KV surge protection

• Die-cast aluminum housing with polycarbonate lens

• 120–277V input, 50/60Hz

• Rated for outdoor use, -40°F to +122°F

• 50,000-hour LED lifespan

• Optional photocell compatible
