Satco I32 Emergency Ballast 2.5W Fluorescent -- IOTA Engineering UL

Satco I32 Emergency Ballast 2.5W Fluorescent -- IOTA Engineering UL

$74.98 USD
$74.98 USD
Sale Sold out

CB-0256845
The I32 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allowsthe same fixture to be used for both normal and emergency operation. In the event of apower failure, the I32 sw... Show More
View full details

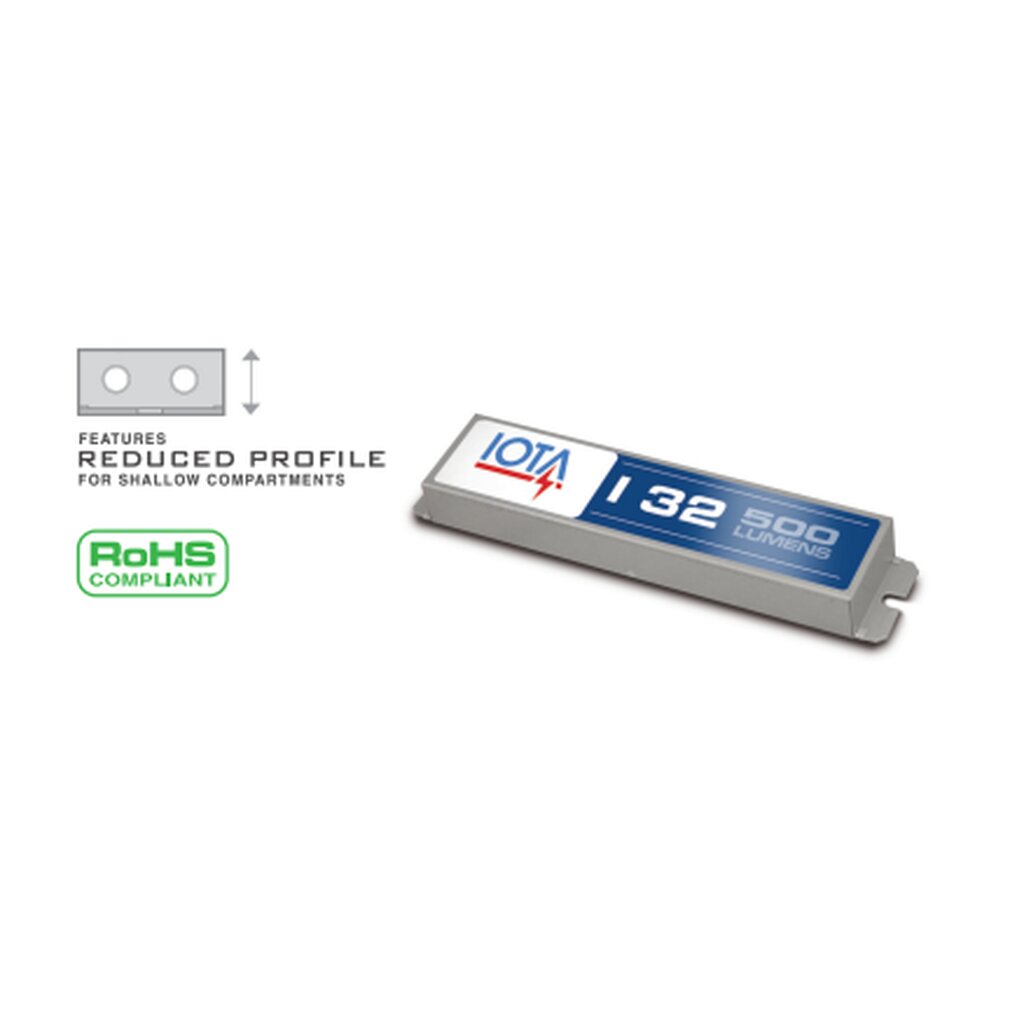

The I32 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows
the same fixture to be used for both normal and emergency operation. In the event of a
power failure, the I32 switches to the emergency mode and operates one of the existing
lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single
can. The I32 can be used with most 2?-4? T8 thru T12 lamps and 28W T5 lamps, with
an initial output of up to 500 lumens for one lamp, and features lamp selector leads
for optimizing light output for designated lamp types. The unit can be mounted in the
wireway or on top of the fixture. The I32 delivers high performance in a reduced height
design, and is ideal for use in fixtures where ballast compartment space is limited. The
I-32 is UL Listed for use in enclosed and gasketed fixtures.

Input Voltage ......................................................................... (Dual) 120/277V, 60Hz
Input Wattage.............................................................................................. 2.5 Watts
Lamps Operated ................................................. Most 2?-4? single, bipin T8 thru T12
and 28W T5 fluorescent lamps
Emergency Operation .............................................................................. 90 minutes
Initial Illumination ............................................................. (1) lamp up to 500 lumens
Operating Temp ........................................................................................ 0° to 50° C
Battery .......................................................................................... 24 Hour Recharge
7-10 Year Life Expectancy
Weight .............................................................................................................1.5 lbs.
Approval ...................................................................................... UL and CUL Listed

Will cold start and operate all
specified lamps
Long life high temperature recyclable
Ni-Cad battery
Galvanized steel case
Includes test switch and charge indicator
accessory kit
For use with switched or unswitched fixtures
Rated for use in plenum and enclosed
and gasketed fixtures
5-Year Warranty. See Warranty Page
for details.
Lamp selector leads optimize light output for
desired lamp type
Meets or exceeds all NEC, IBC, and Life Safety
Code Emergency Lighting Requirements
RoHS Compliant

Product Information

Part Number I32
Brand Satco
Product Code I32

Specifications

Technology Fluorescent
Wattage 2.5
