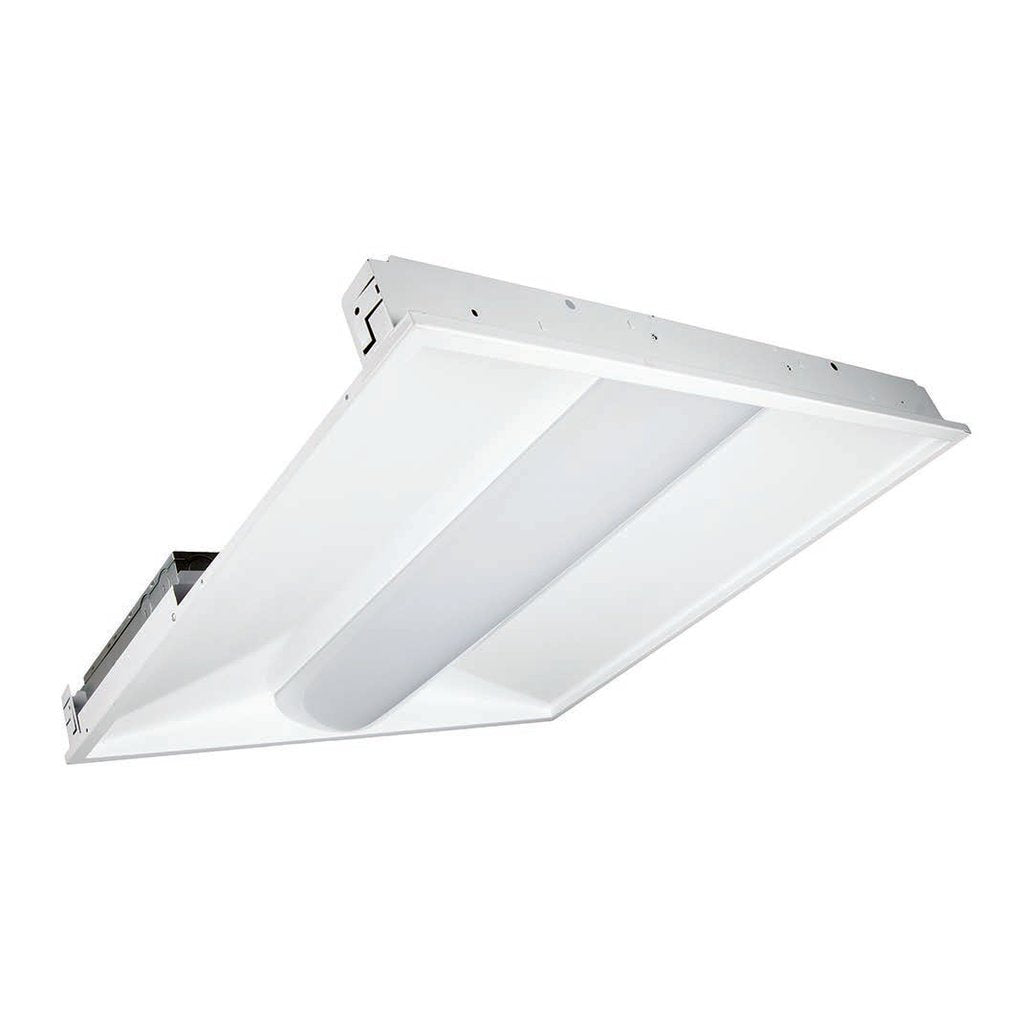

TCP’s LED Volumetric Troffers offer a high-efficiency alternative to T5, T8 and T12 linear fluorescent systems. They provide long life with consistent color and superior lumen maintenance. Designed to mount in a variety of grid ceilings, the rugged, cold-rolled steel housing is post-painted with a highly diffuse white finish. The acrylic diffuser provides a low-glare, wide distribution, and the sloped reflector softens the contrast between the luminaire and ceiling. The LED Volumetric Troffers offer a cost-effective solution to maximize savings and take advantage of utility rebates without sacrificing performance.
• Long 50,000 hour rated life
• Excellent color consistency & CRI
• Mercury free
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
• Retail Stores
• Schools
• Hospitality
• Restaurants
• Healthcare
Reasons to choose the LED Wattage Selectable Volumetric Troffers from TCP
• Up to 61% less energy than fluorescent alternatives• Long 50,000 hour rated life
• Excellent color consistency & CRI
• Mercury free
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
Ideal Applications in T-Bar Ceilings
• Offices• Retail Stores
• Schools
• Hospitality
• Restaurants
• Healthcare
Product Information
Part Number
TRV2UZD2335K
Brand
TCP
Product Code
TRV2UZD2335K
UPC
762148284376
Specifications
Technology
LED
Color Temp
3500K
UL Listed
true
Emitted Color
Bright White
Wattage
23
Input Voltage
120-277V
Color Temperature
3500K
Lumens
3100.0
Hours
50000
CRI
80
Dimmable
true

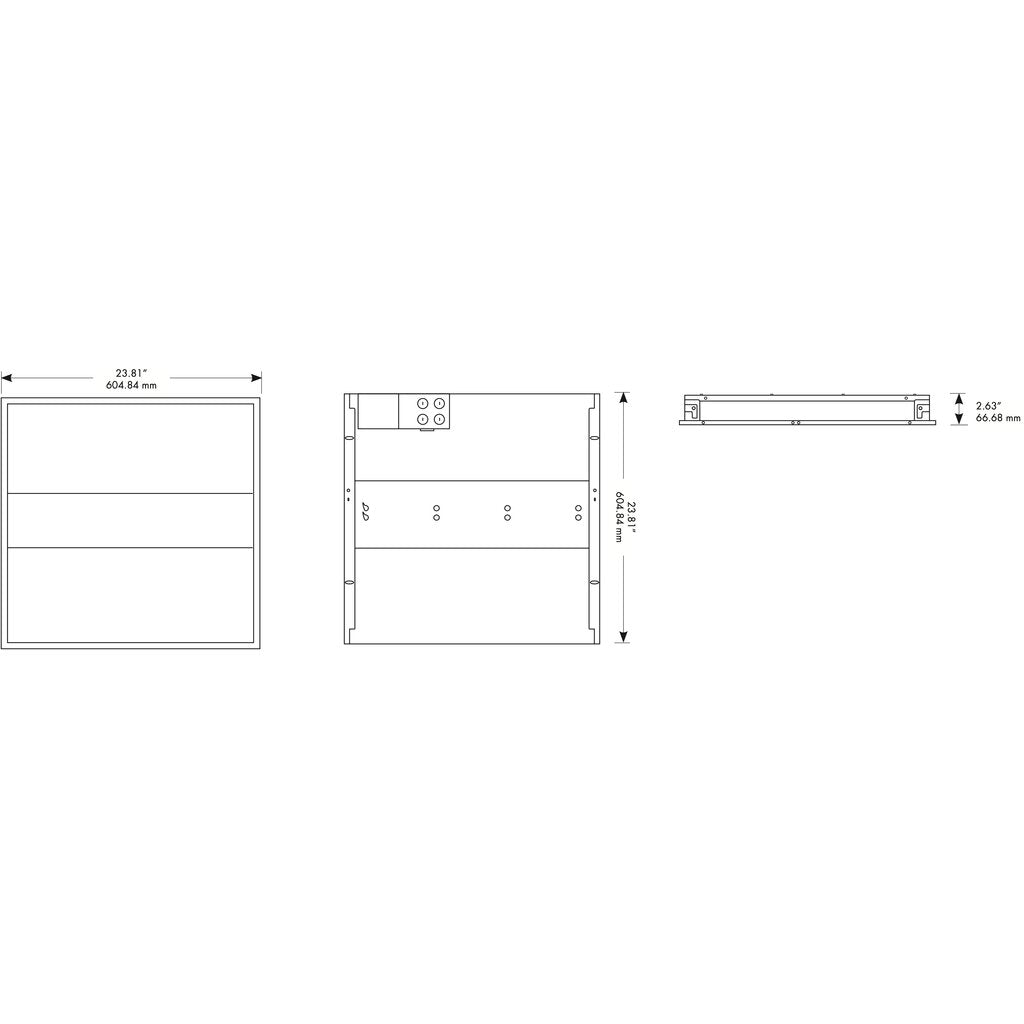

Dimensions
Length
24.8 in
Width
3.7 in
Height
25.3 in
