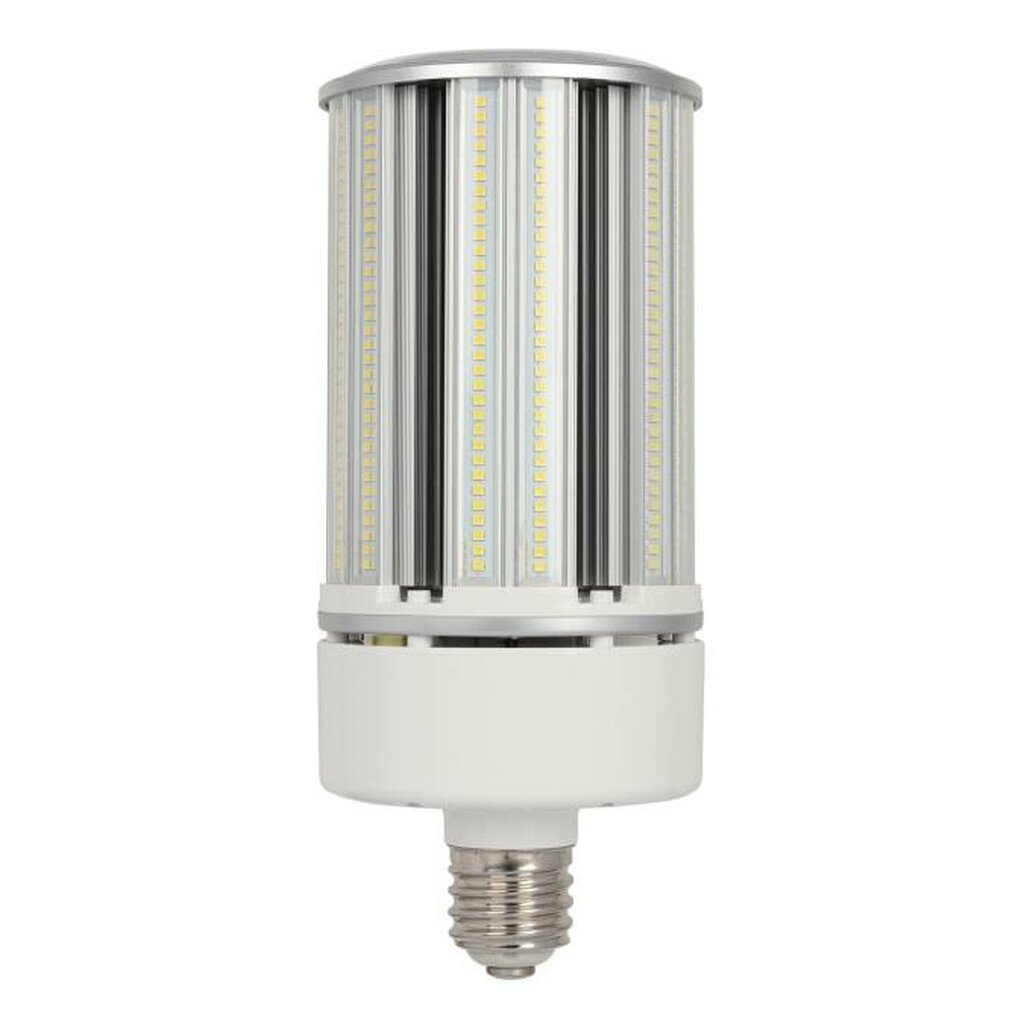

Designed for universal mounting, this LED can be installed base up, base down or horizontal. LED chips on top ensure omni directional lighting, ideal for base up applications.
High Lumen LEDs turn on instantly to full brightness with no color shifting, great for applications such as barn/shop lighting, outdoor post top lanterns and wall pack lighting. With a voltage range of 120 - 277 volts, they can be used for geographical areas affected by voltage fluctuations and feature built in surge protection to withstand momentary surges up to 6000 volts that may occur in industrial installations.
Westinghouse is a trusted global brand. We know lighting and offer products with exceptional quality, reliability and functionality
FEATURES & BENEFITS
- Quality components ensure optimum lumen output over lifetime of the bulb
- Produces similar brightness to HID with superior quality of light
- Offers lifetime cost savings
- Free of harmful mercury
- Built in surge protection
- Ideal for areas with voltage fluctuation
- Less bulb changes in hard to reach locations
- Universal mounting position

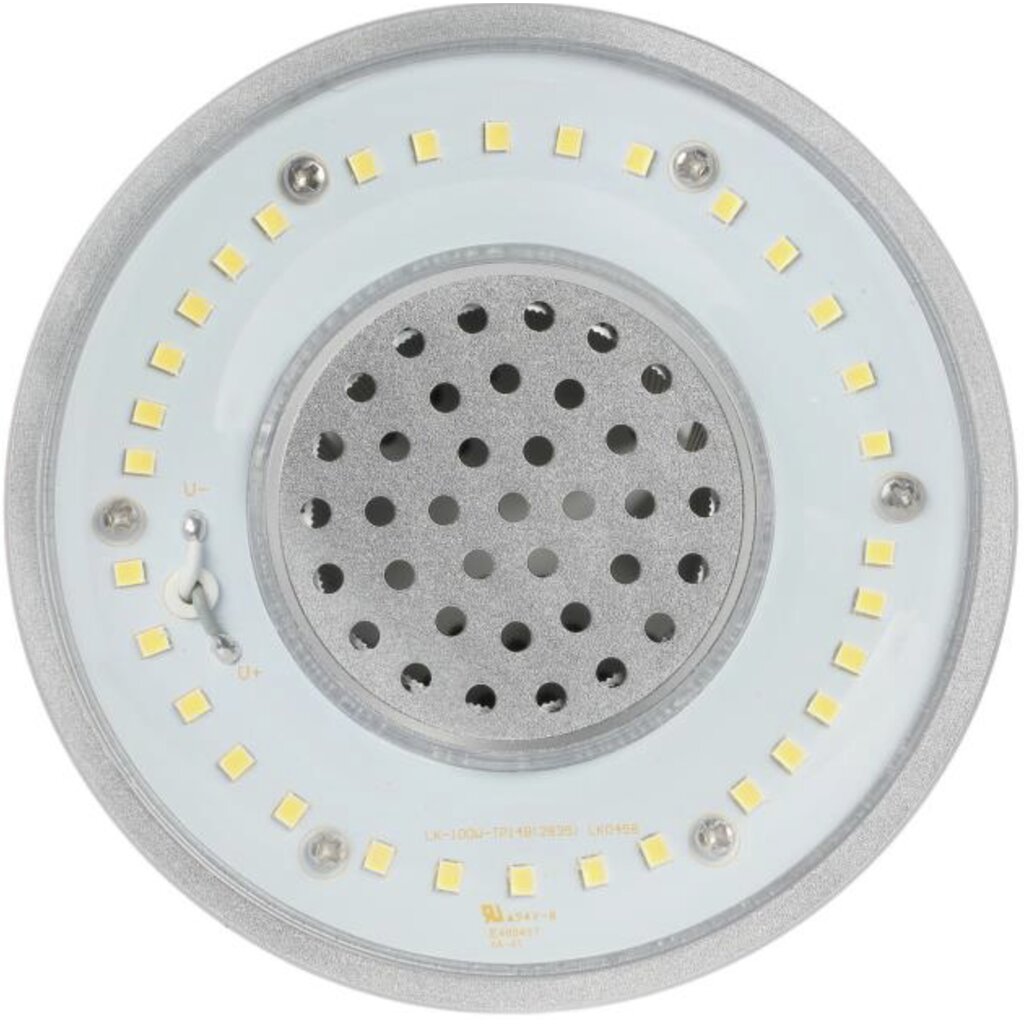

- LED has chips on the top to ensure omni directional lighting
RECOMMENDED USES
- High lumen replacement for HID, CFL and incandescent applications
- Ideal replacement for high lumen HID lamps that operate on 277V building mains (must remove transformer or ballast)
- Barn/Shop lighting
- Outdoor post top lanterns
- High bay lighting
- Street lighting
- Wall pack lighting
DIMENSIONS
- 11-1/8 inches (L)
- 4-3/4 inches (D)
INSTALLATION
- Rated for indoor/outdoor use; acceptable for damp location
- IP65 rating: Protection against dust and water jets
- DLC qualified
- Can be used in enclosed fixtures with a minimum fixture dimension of 17.32 inches x 17.32 inches x 17.32 inches
- See spec sheet for CFL, HID and Incandescent watt equivalency
